Ap0 Series Series

Industrial Pushbutton Switches Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Industrial Pushbutton Switches Pushbutton Switches

Part	Current Rating (Amps)	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Ingress Protection	Electrical Life	Voltage Rating - DC	Termination Style	Color - Actuator/Cap	Actuator Marking	Circuit	Switch Function	Mounting Type	Actuator Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Illumination Type, Color
Littelfuse/Commercial Vehicle Products AP4E300TZBE	125 mA 200 mA	Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Red	No Marking	SPST-NO	Off-Mom	Panel Mount Front	Button Round	125 V	-40 °C	105 ░C
Littelfuse/Commercial Vehicle Products AP4D300SZBE	125 mA 200 mA	Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Red	No Marking	SPST-NO	Off-Mom	Panel Mount Snap-In	Button Domed Round	125 V	-40 °C	105 ░C
Littelfuse/Commercial Vehicle Products AP4N007SZBE	125 mA 200 mA	Illuminated Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug		No Marking	SPST-NO	Off-Mom	Panel Mount Snap-In	Plunger for Cap	125 V	-40 °C	85 °C	3.8 VDC	Blue LED
Littelfuse/Commercial Vehicle Products AP4D206SZBE	125 mA 200 mA	Illuminated Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Snap-In	Button Domed Round	125 V	-40 °C	85 °C	2 VDC	Green LED
Littelfuse/Commercial Vehicle Products AP2D206TZBE	125 mA 200 mA	Illuminated Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Front	Button Domed Round	125 V	-40 °C	85 °C	2 VDC	Green LED

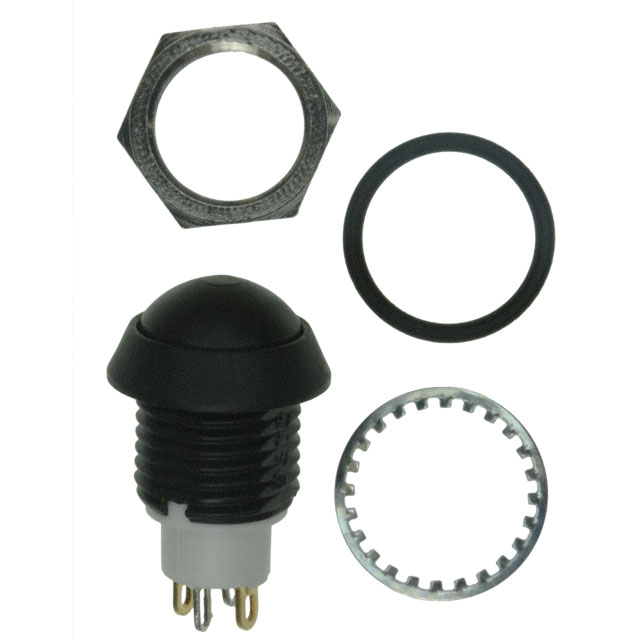

Littelfuse/Commercial Vehicle Products AP4D203TZBE	125 mA 200 mA	Illuminated Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Front	Button Domed Round	125 V	-40 °C	85 °C	2 VDC	LED Red
Littelfuse/Commercial Vehicle Products AP2D202TZBE	125 mA 200 mA	Illuminated Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Front	Button Domed Round	125 V	-40 °C	85 °C	2 VDC	Green/Red LED
Littelfuse/Commercial Vehicle Products AP2E200TWBE	125 mA 200 mA	Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Wire Leads	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Front	Button Round	125 V	-40 °C	105 ░C

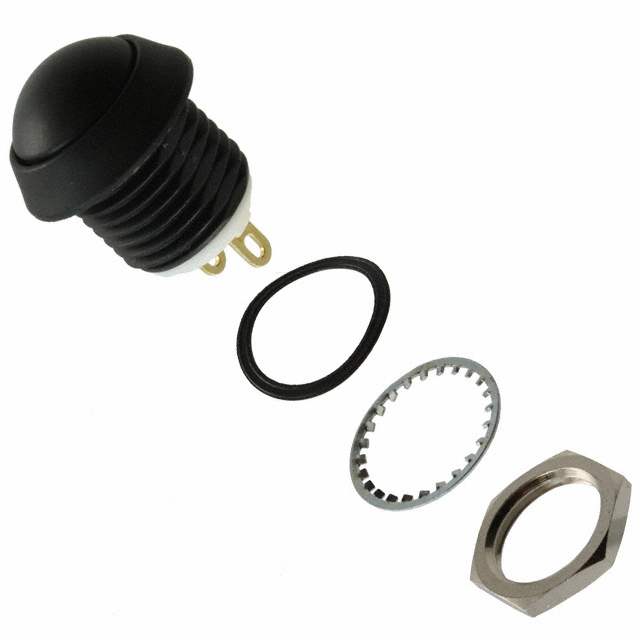

Littelfuse/Commercial Vehicle Products AP4D200TZBE	125 mA 200 mA	Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Front	Button Domed Round	125 V	-40 °C	105 ░C
Littelfuse/Commercial Vehicle Products AP2E202SZBE	125 mA 200 mA	Illuminated Standard	13.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	1000000 Cycles	24 V	Solder Lug	Black	No Marking	SPST-NO	Off-Mom	Panel Mount Snap-In	Button Round	125 V	-40 °C	85 °C	2 VDC	Green/Red LED

Catalog

Industrial Pushbutton Switches Pushbutton Switches

Key Features

• Multiple colored caps available - order separately

• Illumination/ non-illumination

• IP 67 sealed

Description

AP series industrial pushbutton switches are found in applications used in the industrial industry, because of their ability to withstand harsh environments. C&K’s AP switches are IP67 sealed and come with optional illumination and multiple colored caps, ensuring they can match any design or style.
