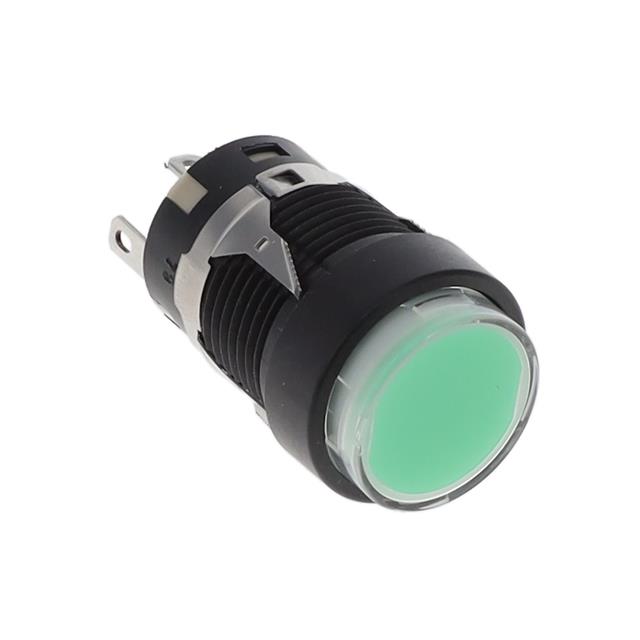

YB15MK Series
Manufacturer: NKK Switches
Beta
⌘K
SHORT BODY PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Type | Switch Function | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Illumination Voltage (Nominal) | Actuator Type | Voltage Rating - DC | Termination Style | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Illumination Type, Color | Actuator Marking | Features | Color - Actuator/Cap [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 125 V | 3 A | Panel Mount Snap-In | 5 VDC | Button Round | 30 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Amber LED | |||
 NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 125 V | 3 A | Panel Mount Snap-In | 5 VDC | Button Round | 30 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green/Red LED | No Marking | Stainless Steel | |
NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 125 V | 3 A | Panel Mount Snap-In | 24 V | Button Round | 30 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Amber LED | No Marking | Stainless Steel | |
NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 28 V | 0.4 VA | Panel Mount Snap-In | 24 V | Button Round | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green LED | |||
NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 125 V | 3 A | Panel Mount Snap-In | 12 VDC | Button Round | 30 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green LED | No Marking | Stainless Steel | |
NKK Switches | 1000000 Cycles | 100000 Cycles | Standard | On-Mom | SPDT | 70 °C | -25 °C | 125 V | 3 A | Panel Mount Snap-In | Button Round | 30 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | No Marking | Stainless Steel | Blue | |||
 NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 28 V | 0.4 VA | Panel Mount Snap-In | 12 VDC | Button Round | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green LED | No Marking | Stainless Steel | |
NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 125 V | 3 A | Panel Mount Snap-In | 3.3 VDC | Button Round | 30 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green LED | No Marking | Stainless Steel | |
NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 28 V | 0.4 VA | Panel Mount Snap-In | 2.1 VDC | Button Round | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green/Red LED | No Marking | Stainless Steel | |
NKK Switches | 1000000 Cycles | 100000 Cycles | Illuminated Standard | On-Mom | SPDT | 50 °C | -25 °C | 28 V | 0.4 VA | Panel Mount Snap-In | 5 VDC | Button Round | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16 mm | Clear | Green LED | No Marking | Stainless Steel |
