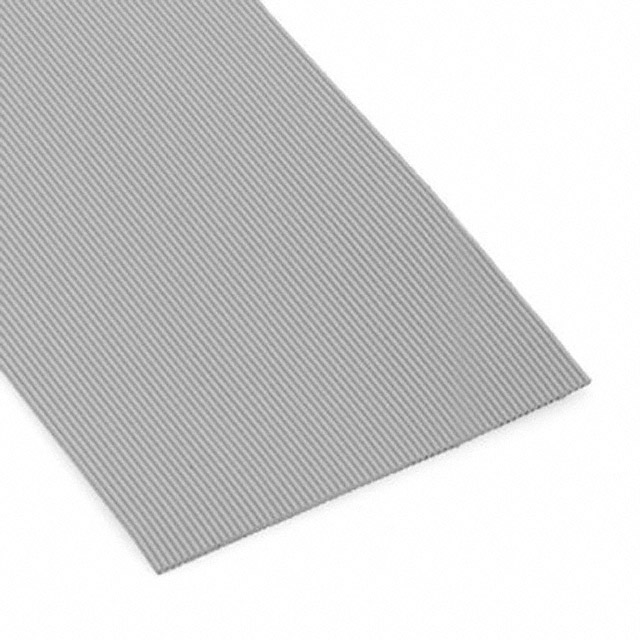

3447 Series

Manufacturer: 3M (TC)

Catalog

80001236399 3447/60-300=60/CAB/RC/TYP1/PVC/30AWG/SLD/.025/300

Part	Ribbon Width [y]	Ribbon Width [y]	Number of Conductors	Features	First Conductor Mark	Length [x]	Length [x]	Conductor Strand	Ratings	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Resistance	Pitch [x]	Pitch [x]	Cable Type	Voltage	Wire Gauge	Conductor Material	Shielding	Jacket Color	Length	Length	Ribbon Width	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width
3M (TC) 3447/60	38.1 mm	1.5 in	60	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray
3M (TC) 3447/30 300			30	Zippable	Red			Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray	91.44 m	300 ft	0.75 "	19.05 mm
3M (TC) 3447/80	50.8 mm	2 in	80	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray
3M (TC) 3447/80 300	50.8 mm	2 in	80	Zippable	Red			Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray	91.44 m	300 ft
3M (TC) 3447/20			20	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray					0.5 "	12.7 mm
3M (TC) 3447/10			10	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray			0.25 in	6.35 mm
3M (TC) 3447/16 300			16	Zippable	Red			Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray	91.44 m	300 ft	0.4 in	10.16 mm
3M (TC) 3447/34			34	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray			0.85 in	21.59 mm
3M (TC) 3447/30 100			30	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray			0.75 "	19.05 mm
3M (TC) 3447/40			40	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray				1 in			25.4 mm
