816 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

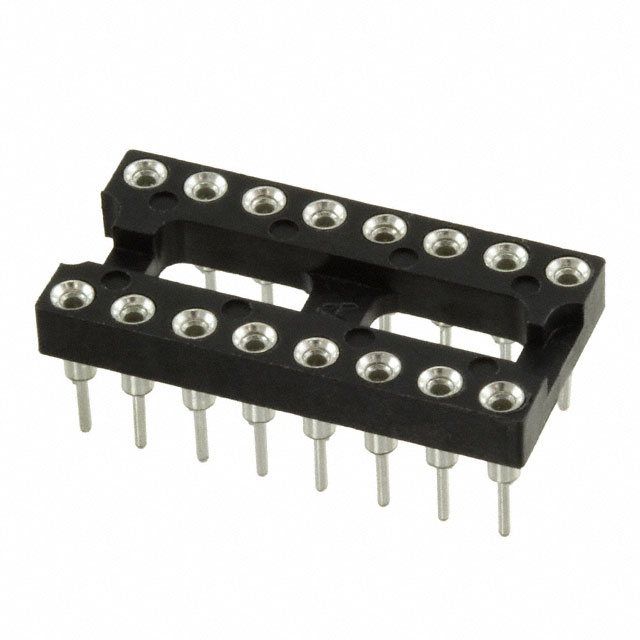

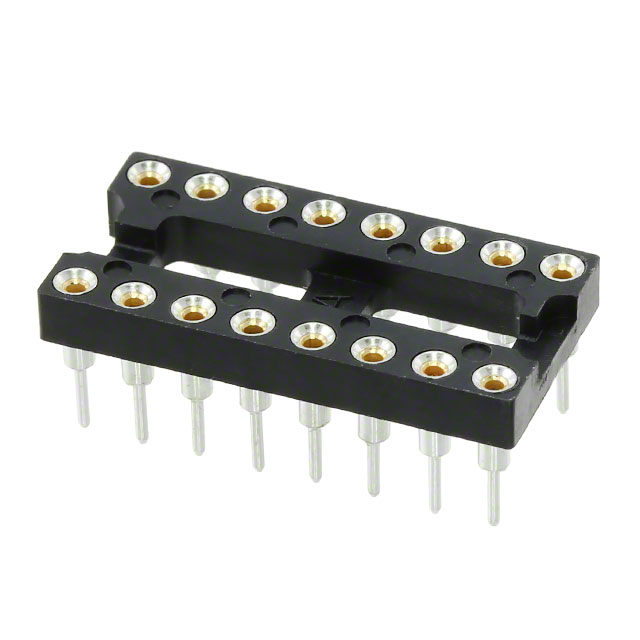

CONN IC DIP SOCKET 16POS GOLD
| Part | Contact Resistance | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Finish Thickness - Mating | Mounting Type | Contact Finish - Post | Features | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Type | Type | Type | Contact Finish Thickness - Post | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Material - Mating | Housing Material | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | Flash | Through Hole | Gold | Open Frame | 2 | 16 | 8 | 7.62 mm | 0.3 in | DIP | Flash | Solder | -55 C | 105 ░C | 0.1 " | 2.54 mm | Gold | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | Copper | |||
TE Connectivity AMP Connectors | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | Through Hole | Tin-Lead | Open Frame | 2 | 16 | 8 | 7.62 mm | 0.3 in | DIP | Solder | -55 C | 105 ░C | 0.1 " | 2.54 mm | Gold | Copper Alloy | Polyester | 0.1 in | 2.54 mm | Copper Alloy | 3 A | 2.03 µm | 80 µin | ||
 TE Connectivity AMP Connectors | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | Through Hole | Open Frame | 2 | 16 | 8 | 7.62 mm | 0.3 in | DIP | Solder | -55 C | 105 ░C | 0.1 " | 2.54 mm | Gold | Copper Alloy | Polyester | 0.1 in | 2.54 mm | 3 A | ||||||
 TE Connectivity AMP Connectors | 10 mOhm | 0.125 in | 3.18 mm | UL94 V-0 | Through Hole | Tin | Open Frame | 2 | 16 | 8 | 7.62 mm | 0.3 in | DIP | Solder | -55 C | 105 ░C | 0.1 " | 2.54 mm | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | Copper |
