29421 Series
Manufacturer: Phoenix Contact
Beta
⌘K

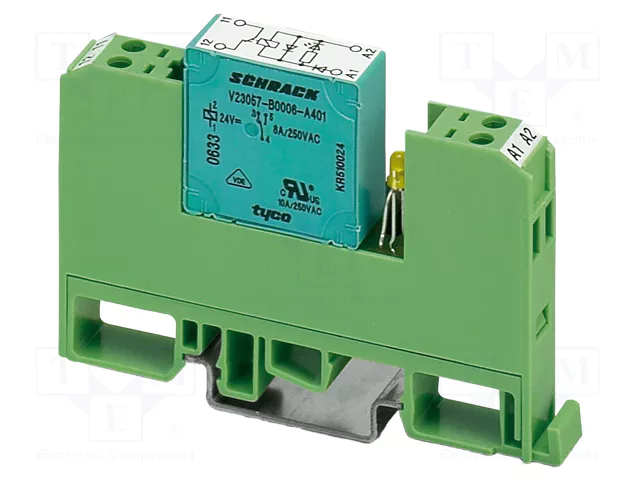

RELAY: INTERFACE; SPST-NO; UCOIL: 24VDC; 8A; 6A/250VAC; 6A/250VDC
| Part | Coil Resistance | Approval Agency | Contact Form | Coil Current | Mounting Type | Load - Max Switching | Release Time | Contact Rating (Current) | Termination Style | Features | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Switching Voltage | Relay Type | Coil Type | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1.14 kOhms | cULus EAC UL | SPST-NC (1 Form B) | 21 mA | DIN Rail | 140 W 1500 VA | 11 ms | 6 A | Screw Terminal | Socket Included | 24 VDC | -20 ░C | 40 °C | Silver Nickel (AgNi) | 250 VAC 250 VDC | General Purpose | Non Latching | 7 ms |

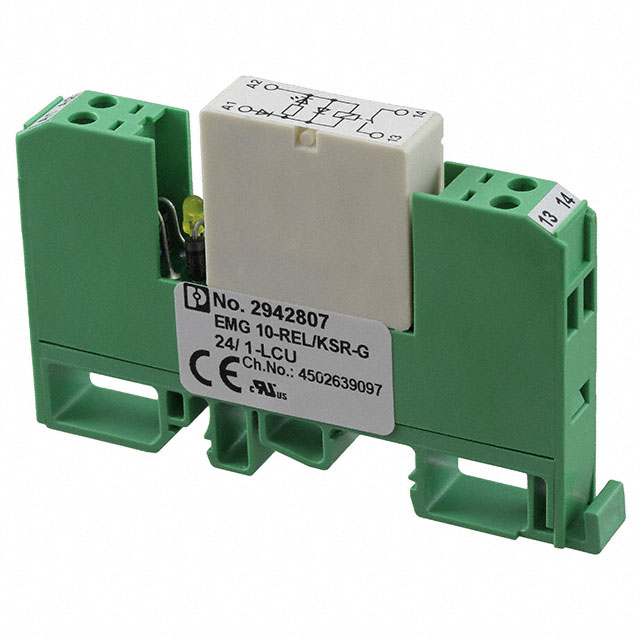

 Phoenix Contact | 1.14 kOhms | cULus EAC UL | SPST-NO (1 Form A) | 21 mA | DIN Rail | 140 W 1500 VA | 11 ms | 6 A | Screw Terminal | Socket Included | 24 VDC | -20 ░C | 40 °C | Silver Nickel (AgNi) | 250 VAC 250 VDC | General Purpose | Non Latching | 7 ms |
 Phoenix Contact | 1.14 kOhms | cULus EAC UL | SPDT (1 Form C) | 21 mA | DIN Rail | 140 W 1500 VA | 11 ms | 6 A | Screw Terminal | Socket Included | 24 VDC | -20 ░C | 40 °C | Silver Nickel (AgNi) | 250 VAC 250 VDC | General Purpose | Non Latching | 7 ms |
