DRV8821 Series
Manufacturer: Texas Instruments
Beta
⌘K
32-V, 1.5-A DUAL BIPOLAR STEPPER MOTOR DRIVER WITH CURRENT REGULATION AND 1/8 MICROSTEPPING
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output | Function | Mounting Type | Supplier Device Package | Applications | Motor Type - Stepper | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Step Resolution | Package / Case | Package / Case | Package / Case [custom] | Output Configuration | Interface | Embedded | Secondary Attributes [Max] | Secondary Attributes [Min] | Supplied Contents | Primary Attributes | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 32 VDC | 8 V | 1.5 A | Driver - Fully Integrated Control and Power Stage | Surface Mount | 48-HTSSOP | General Purpose | Bipolar | 150 °C | -40 °C | Power MOSFET | 1 1/2 1/4 1/8 | 48-PowerTFSOP | 0.24 in | 6.1 mm | Half Bridge (8) | Logic | |||||||

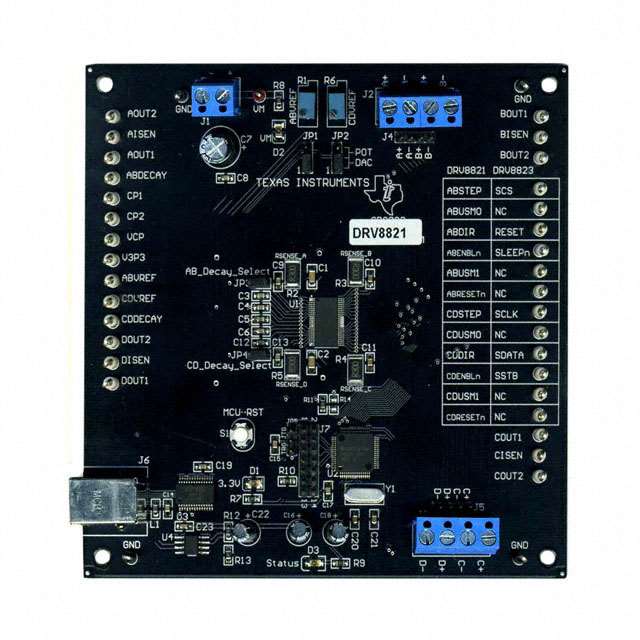

 Texas Instruments | Motor Controller/Driver | 32 V | 8 V | Board(s) | Dual Full-Bridge (H-Bridge) Driver with PWM Current Controller | Power Management | DRV8821 |
