NRVBSS16HE Series

1.0 A, 60 V Surface Mount Schottky Barrier Rectifiers

Catalog

1.0 A, 60 V Surface Mount Schottky Barrier Rectifiers

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Qualification	Reverse Recovery Time (trr)	Package / Case	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Supplier Device Package	Grade	Technology	Mounting Type

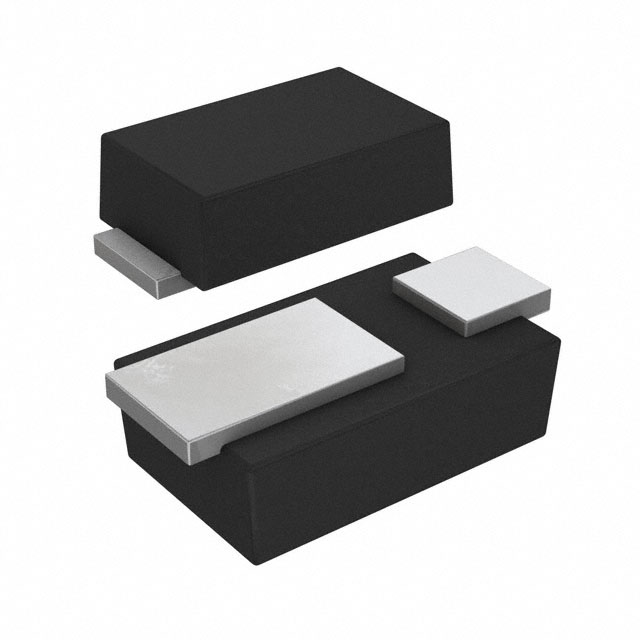

ON Semiconductor NRVBSS16HE	60 V	43 pF	200 mA 500 ns	150 °C	-55 °C	AEC-Q101	8.3 ns	2-SMD Flat Leads	1 A	50 çA	SOD-323HE	Automotive	Schottky	Surface Mount

Catalog

1.0 A, 60 V Surface Mount Schottky Barrier Rectifiers

Key Features

• "Very Low Profile - Typical Height of 0.68 mm

• Low Power Loss, High Efficiency

• UL Flammability 94V-0 Classification

• NRVB Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements

• RoHS Compliant / Green Mold Compound

• Moisture Sensitivity Level 1 per J−STD−020

Description

The Schottky Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop-reverse current tradeoff. It is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications, where compact size and weight are critical to the system.
