9G1212 Series

Catalog

FAN AXIAL 119X25MM 12VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Static Pressure	Static Pressure	Weight	Weight	Bearing Type	Approval Agency	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	RPM	Air Flow	Air Flow	Termination	Power (Watts)	Fan Type	Noise	Material - Blade	Material - Frame	Features	Weight [custom]	Weight [custom]	Size / Dimension [z]	Static Pressure
Sanyo Denki America Inc. 9G1212E402	40000 Hrs	580 mA	10.2 VDC	13.8 VDC	12 VDC	0.394 in H2O	98.1 Pa	239.95 g	0.529 lb	Ball	CSA TUV UL	25 mm	-10 °C	60 °C	Square	119 mm	119 mm	3650 RPM	115 CFM	3.22 mł/min	2 Wire Leads	6.96 W	Tubeaxial	48 dB
Sanyo Denki America Inc. 9G1212P4G031	40000 Hrs	900 mA	10.2 VDC	13.8 VDC	12 VDC			240 g	0.529 lb	Ball	CSA TUV UR	25 mm	-20 ░C	70 °C	Square	119 mm	119 mm	4100 RPM	130 CFM	3.64 m³/min	4 Wire Leads	10.8 W	Tubeaxial	51 dB(A)	Plastic	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9G1212G4D011	40000 Hrs	900 mA	10.2 VDC	13.8 VDC	12 VDC			239.95 g	0.529 lb	Ball	CSA TUV UL	25 mm	-20 ░C	70 °C	Square	119 mm	119 mm	4100 RPM	130 CFM	3.64 m³/min	3 Wire Leads	10.8 W	Tubeaxial	51 dB(A)	Plastic	Plastic	Locked Rotor Sensor
Sanyo Denki America Inc. 9G1212E101	40000 Hrs	0.61 A	10.2 VDC	13.8 VDC	12 VDC	0.401 in H2O	100 Pa			Ball	CSA TUV UL	38 mm	-20 ░C	70 °C	Square	119 mm	119 mm	3100 RPM	118 CFM	3.3 m³/min	3 Wire Leads	7.32 W	Tubeaxial	46 dB(A)	Plastic	Plastic	Speed Sensor (Tach)	0.728 lb	330.22 g
Sanyo Denki America Inc. 9G1212A4D01	40000 Hrs	400 mA	10.2 VDC	13.8 VDC	12 VDC	0.309 in H2O	77 Pa	239.95 g	0.529 lb	Ball	CSA TUV UL	25 mm	-20 ░C	70 °C		120 mm		3150 RPM	100 CFM	2.8 m³/min	3 Wire Leads	4.8 W	Tubeaxial	44 dB(A)	Plastic	Plastic	Locked Rotor Sensor			120 mm

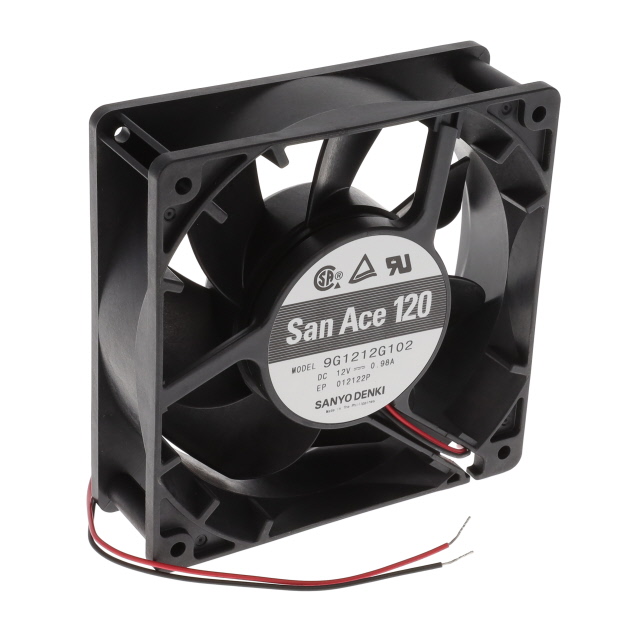

Sanyo Denki America Inc. 9G1212G102	40000 Hrs	0.98 A	10.2 VDC	13.8 VDC	12 VDC	0.542 in H2O	135 Pa			Ball	CSA TUV UL	38 mm	-20 ░C	70 °C	Square	119 mm	119 mm	3600 RPM	137 CFM	3.84 m³/min	2 Wire Leads	11.76 W	Tubeaxial	49 dB	Plastic	Plastic		0.728 lb	330.22 g
Sanyo Denki America Inc. 9G1212H1D01	40000 Hrs	0.38 A	7 V	13.8 VDC	12 VDC	0.283 in H2O	70.5 Pa			Ball	CSA TUV UL	38 mm	-20 ░C	70 °C	Square	119 mm	119 mm	2600 RPM	99 CFM	2.77 m³/min	3 Wire Leads	4.56 W	Tubeaxial	39 dB(A)	Plastic	Plastic	Locked Rotor Sensor	0.728 lb	330.22 g
Sanyo Denki America Inc. 9G1212B401	40000 Hrs	60 mA	10.2 VDC	13.8 VDC	12 VDC	0.039 in H2O	9.7 Pa	240 g	0.529 lb	Ball		25 mm	-20 ░C	70 °C	Square	119 mm	119 mm	1000 RPM	31 CFM	0.868 mł/min	3 Wire Leads	720 mW	Tubeaxial	18 dB(A)	Plastic	Plastic	Speed Sensor (Tach)
Sanyo Denki America Inc. 9G1212M4021	40000 Hrs	140 mA	7 V	13.8 VDC	12 VDC	0.124 in H2O	30.9 Pa	239.95 g	0.529 lb	Ball	CSA TUV UL	25 mm	-20 ░C	70 °C	Square	119 mm	119 mm	1950 RPM	59 CFM	1.65 mł/min	2 Wire Leads	1.68 W	Tubeaxial	29 dB(A)	Plastic	Plastic
Sanyo Denki America Inc. 9G1212H4021	40000 Hrs	0.31 A	6 VDC	13.8 VDC	12 VDC		0.257 in H2O	239.95 g	0.529 lb	Ball	CSA TUV UL	25 mm	-20 ░C	70 °C	Square	119 mm	119 mm	2850 RPM	88 CFM	2.46 mł/min	2 Wire Leads	3.72 W	Tubeaxial	40 dB(A)	Plastic	Plastic					64 Pa
