7050045 Series

Catalog

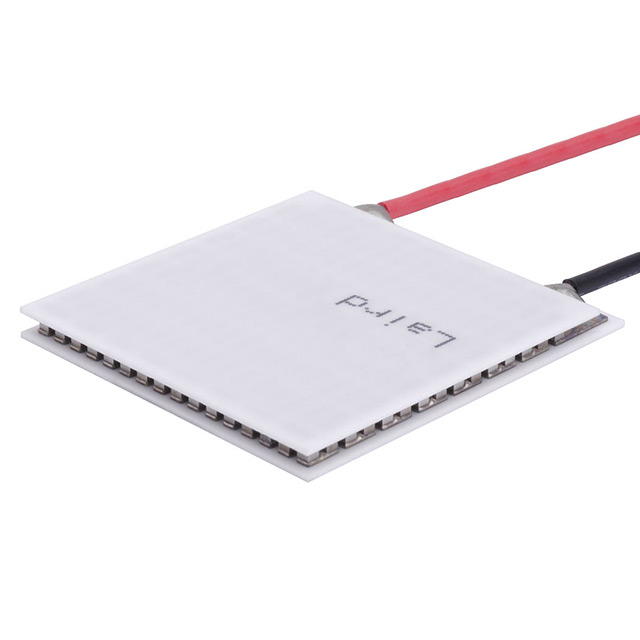

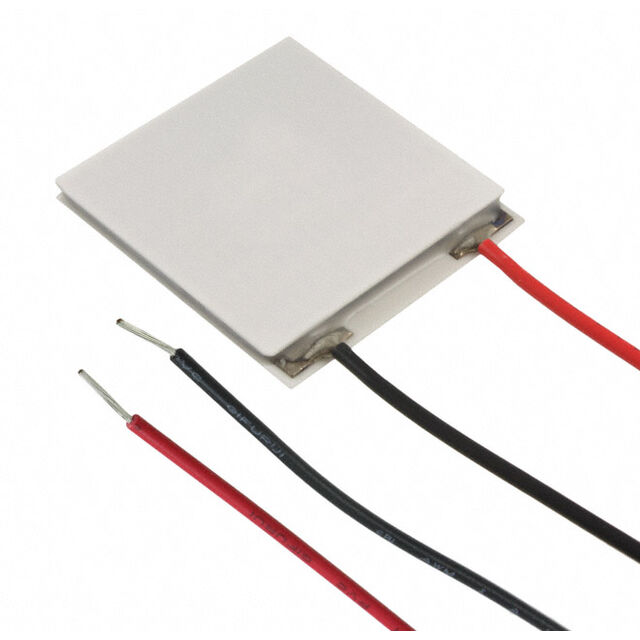

PELTIER MOD 43.9X39.9X3.33MM

Part	Current - Max [Max]	Features	Number of Stages	Qmax @ Th	Voltage - Max [Max]	Height [z]	Operating Temperature	Delta Tmax @ Th	Resistance	Size / Dimension [y]	Size / Dimension [x]
Laird Thermal Systems, Inc. 7050045-510	8.5 A	Lead Wires Sealed - Epoxy	1	73.9 W	14.3 V	3.33 mm	80 °C	64 °C	1.55 Ohms	39.9 mm	43.9 mm
Laird Thermal Systems, Inc. 7050045-503	8.5 A	Lead Wires Sealed - Silicone RTV	1	73.9 W	14.3 V	3.33 mm	80 °C	64 °C	1.55 Ohms	39.9 mm	43.9 mm
Laird Thermal Systems, Inc. 7050045-502	8.5 A	Lead Wires Non-Sealed	1	73.9 W	14.3 V	3.33 mm	80 °C	64 °C	1.55 Ohms	39.9 mm	43.9 mm
