299-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN IC DIP SOCKET 6POS GOLD
| Part | Current Rating (Amps) | Termination Post Length [x] | Termination Post Length [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Contact Finish - Mating | Pitch - Post | Pitch - Post | Pitch - Mating | Pitch - Mating | Type | Type | Type | Contact Material - Post | Contact Material - Mating | Housing Material | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Termination | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Type [custom] | Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

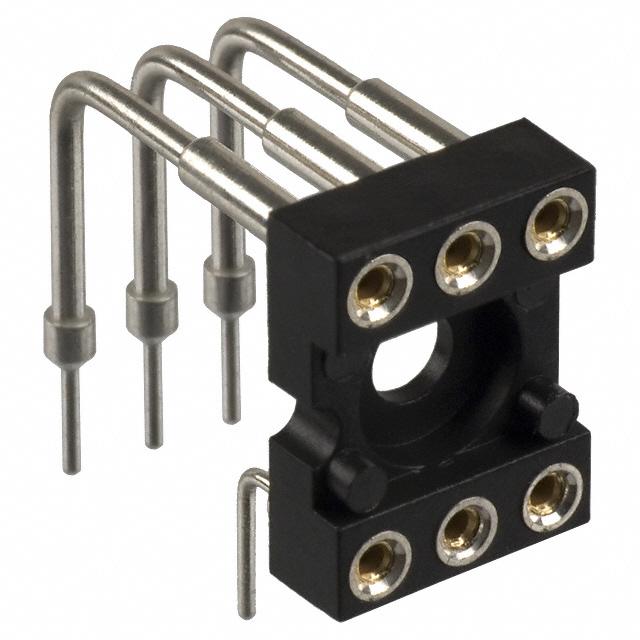

 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 positions or pins | 2 | 6 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | ||
 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | 15.24 mm | 0.6 in | |||||

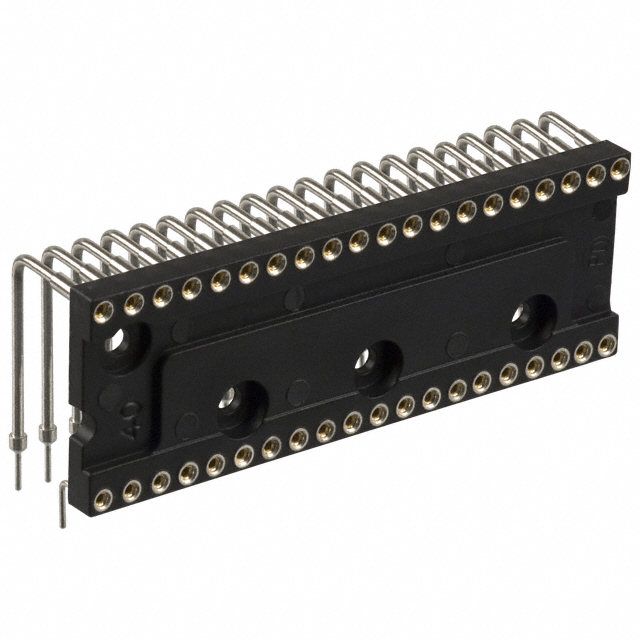

 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 40 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | 15.24 mm | 0.6 in | ||||
 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 12 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | ||||

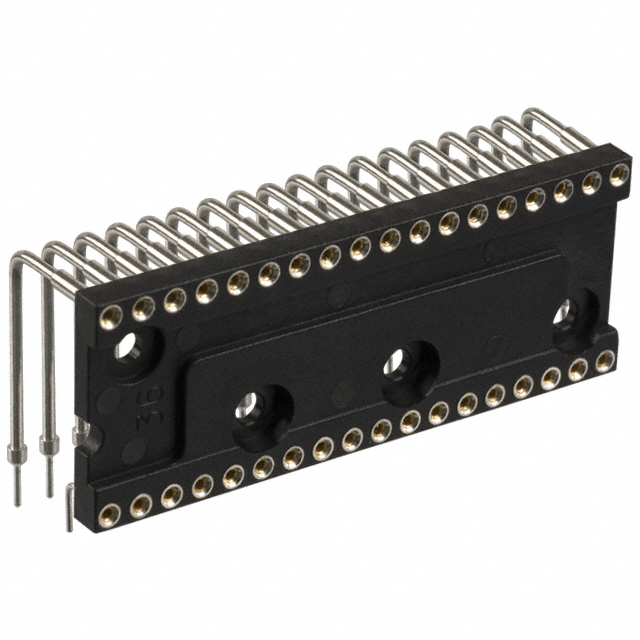

 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 36 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | 15.24 mm | 0.6 in | ||||

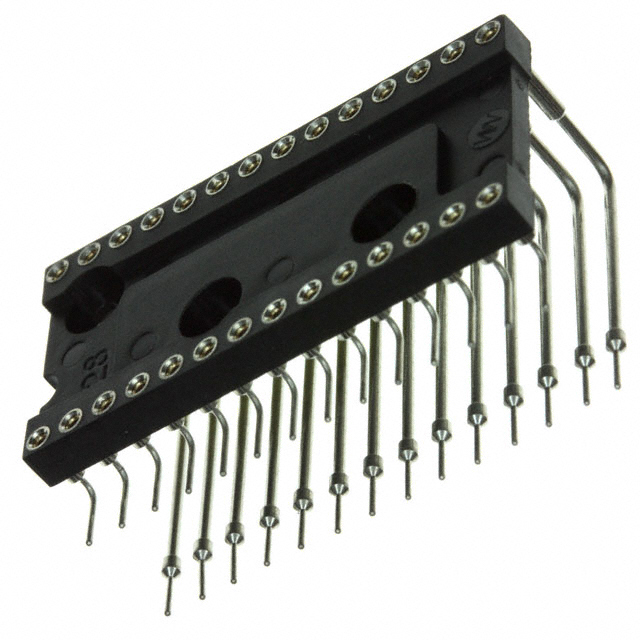

 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 28 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | 15.24 mm | 0.6 in | ||||

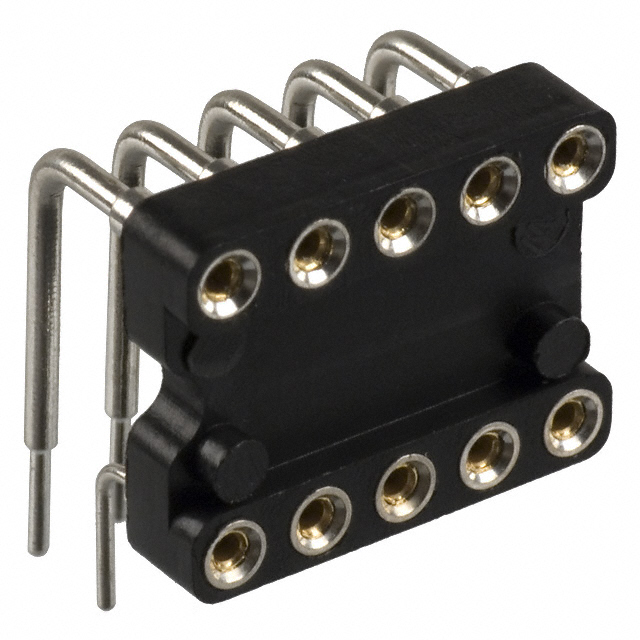

 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 5 | 2 | 10 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | ||
 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 4 | 2 | 8 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | ||

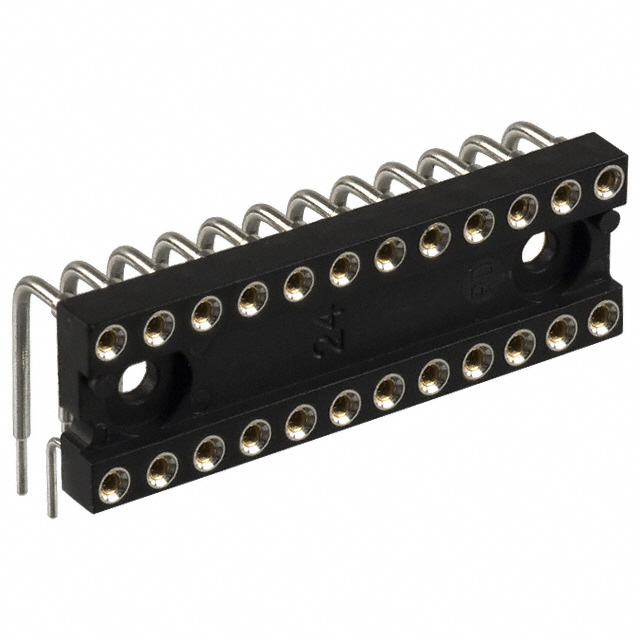

 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 2 | 12 | 24 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | ||
 Mill-Max Manufacturing Corp. | 3 A | 3.2 mm | 0.126 in | 200 µin | 5.08 µm | Closed Frame | Gold | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | DIP | Brass Alloy | Beryllium Copper | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 11 | 2 | 22 | Solder | Tin-Lead | 0.76 Ám | 30 Áin | -55 C | 125 °C | 15.24 mm | 0.6 in |
