LCA6 Series

Catalog

CONN TERM RECT TONG 6 AWG

Part	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Contact Material	Insulation	Color	Mounting Type	Length - Overall	Length - Overall	Tab Thickness [custom]	Tab Thickness [custom]	Wire Gauge	Termination	Terminal Style	Terminal Type	Width - Outer Edges	Width - Outer Edges	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Stud/Tab Size	Diameter - Ring ID	Diameter - Ring ID	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Diameter - Ring ID	Width - Outer Edges [x]	Width - Outer Edges [x]

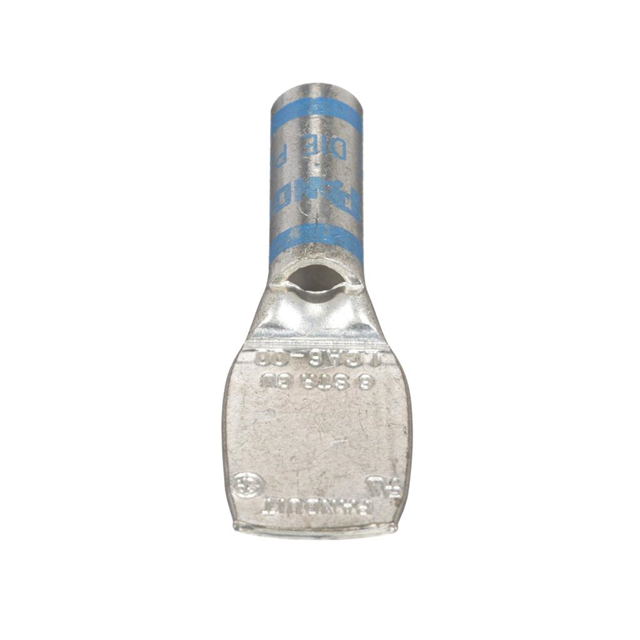

Panduit Corp LCA6-00-L	0.22 in	5.59 mm	0.31 in	7.87 mm	Electro-Tin	Copper	Non-Insulated	Blue	Free Hanging (In-Line)	46.48 mm	1.83 in	0.06 in	1.52 mm	6 AWG	Barrel Crimp	No Stud Hole	Rectangular Tongue	0.62 in	15.75 mm

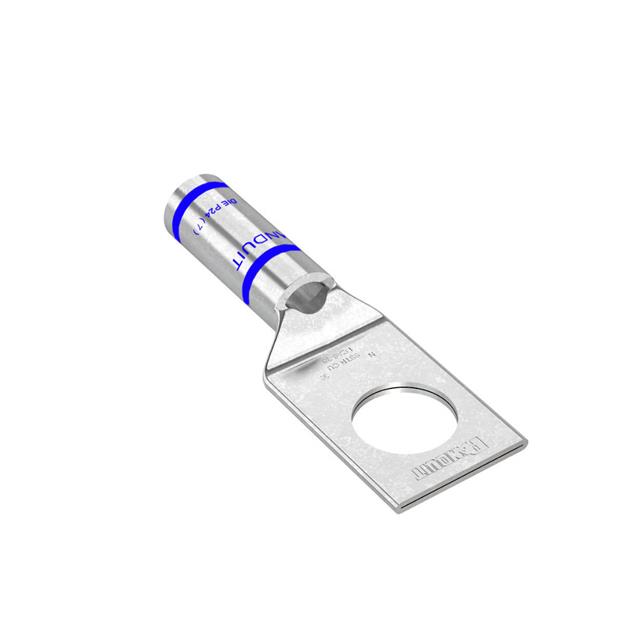

Panduit Corp LCA6-38-L	0.22 in	5.59 mm	0.31 in	7.87 mm	Electro-Tin	Copper	Non-Insulated	Blue	Free Hanging (In-Line)	46.48 mm	1.83 in	0.06 in	1.52 mm	6 AWG	Barrel Crimp	Single Stud Hole	Rectangular Tongue	0.62 in	15.75 mm	10.41 mm	0.41 "	0.375 Stud

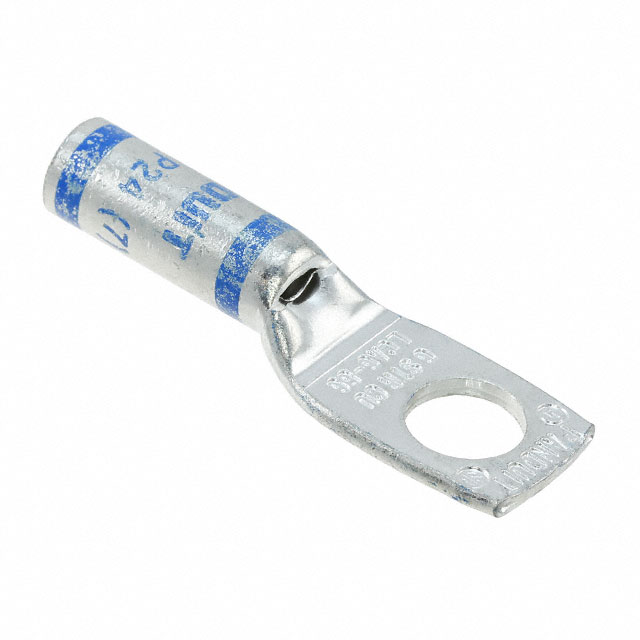

Panduit Corp LCA6-56-L	0.22 in	5.59 mm	0.31 in	7.87 mm	Electro-Tin	Copper	Non-Insulated	Blue	Free Hanging (In-Line)					6 AWG	Barrel Crimp	Single Stud Hole	Rectangular Tongue	0.56 in	14.22 mm			0.3125 Stud	8.64 mm	0.34 in	1.78 mm	0.07 in	43.94 mm	1.73 in

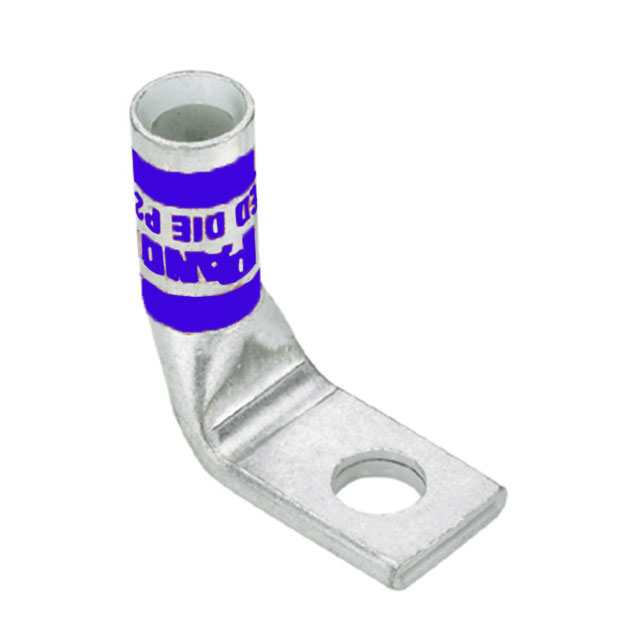

Panduit Corp LCA6-10F-L	0.22 in	5.59 mm	0.31 in	7.87 mm	Electro-Tin	Copper	Non-Insulated	Blue	Free Hanging (In-Line) Right Angle			0.09 in	2.29 mm	6 AWG	Barrel Crimp	Single Stud Hole	Rectangular Tongue			5.08 mm	0.2 in	10 Stud							11.43 mm	0.45 in

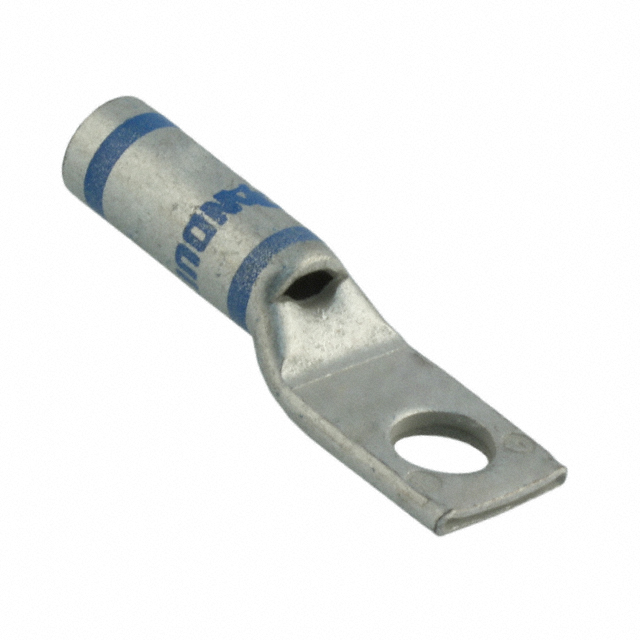

Panduit Corp LCA6-14-L	0.22 in	5.59 mm	0.31 in	7.87 mm	Electro-Tin	Copper	Non-Insulated	Blue	Free Hanging (In-Line)					6 AWG	Barrel Crimp	Single Stud Hole	Lug Grounding					0.25 Stud		6.86 mm	2.03 mm	0.08 "	40.89 mm	1.61 in			0.27 in	12.19 mm	0.48 "
Panduit Corp LCA6-10-L	0.22 in	5.59 mm	0.31 in	7.87 mm	Electro-Tin	Copper	Non-Insulated	Blue	Free Hanging (In-Line)			0.09 in	2.29 mm	6 AWG	Barrel Crimp	Single Stud Hole	Lug Grounding			5.08 mm	0.2 in	10 Stud					38.61 mm	1.52 "	11.43 mm	0.45 in
