A2M1ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Features | Coil Voltage | Release Time | Coil Current | Must Operate Voltage | Contact Rating (Current) | Termination Style | Mounting Type | Operate Time | Switching Voltage [Max] | Coil Type | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

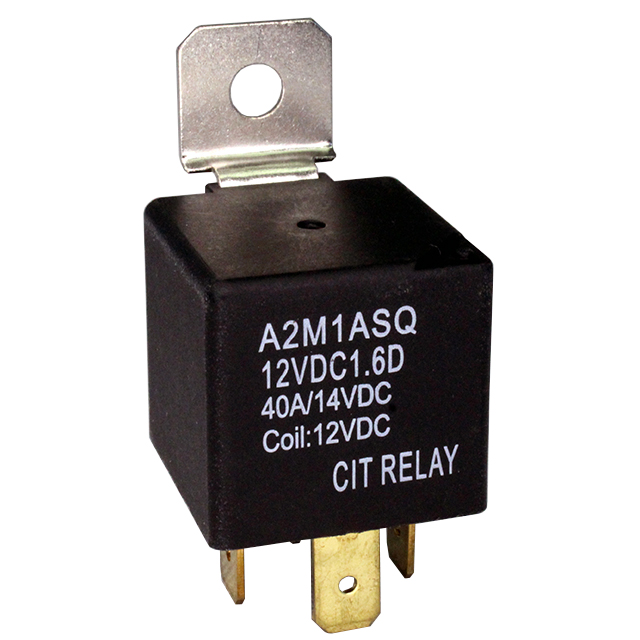

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | 125 °C | -40 C | 1.2 VDC | Diode Sealed - Fully | 12 VDC | 5 ms | 133.3 mA | 8.4 VDC | 40 A | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 7 ms | 75 VDC | Non Latching | SPST-NO (1 Form A) |

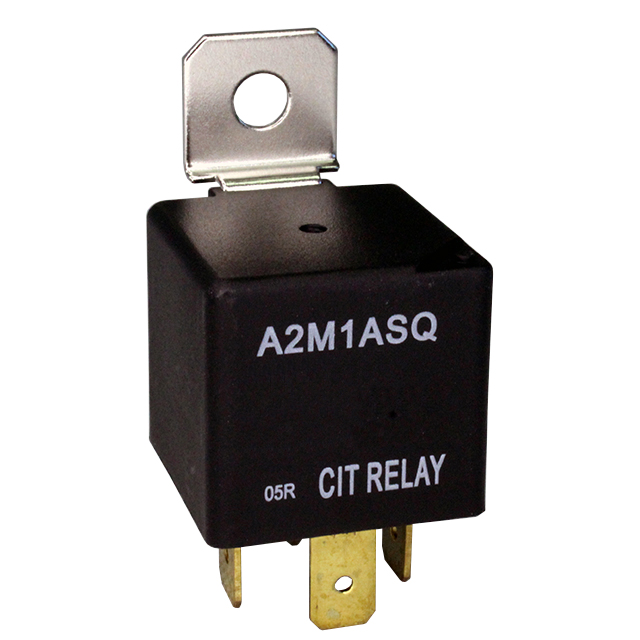

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 360 Ohms | 125 °C | -40 C | 2.4 VDC | Sealed - Fully | 24 VDC | 5 ms | 66.7 mA | 16.8 VDC | 40 A | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 7 ms | 75 VDC | Non Latching | SPST-NO (1 Form A) |
