A11ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 30A 24V
| Part | Coil Resistance | Coil Power | Contact Material | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Coil Type | Termination Style | Termination Style | Mounting Type | Switching Voltage [Max] | Operate Time | Coil Voltage | Release Time | Coil Current | Features | Must Operate Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 480 Ohms | 1.2 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 2.4 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 24 VDC | 7 ms | 50 mA | Diode Sealed - Fully | 18 VDC | 30 A |
 CIT Relay and Switch | 480 Ohms | 1.2 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 2.4 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 24 VDC | 7 ms | 50 mA | Sealed - Fully | 18 VDC | 30 A |

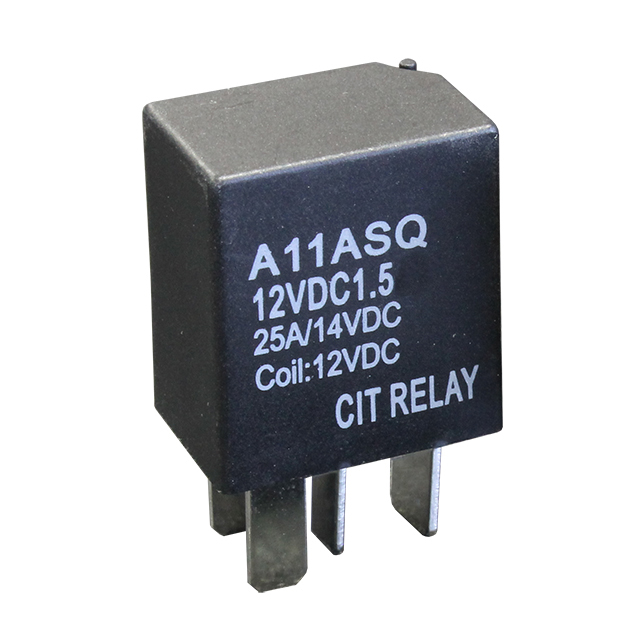

 CIT Relay and Switch | 96 Ohms | 1.5 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 1.2 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 12 VDC | 7 ms | 125 mA | Sealed - Fully | 8.4 VDC | 30 A |
 CIT Relay and Switch | 384 Ohms | 1.5 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 2.4 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 24 VDC | 7 ms | 62.5 mA | Sealed - Fully | 18 VDC | 30 A |

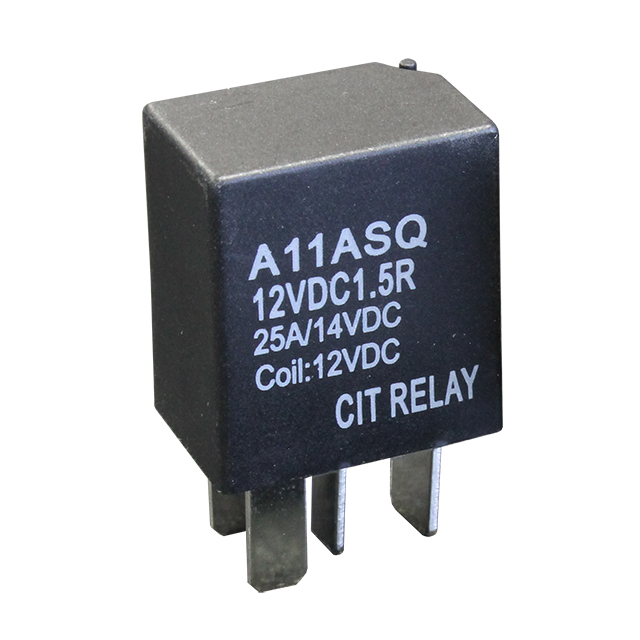

 CIT Relay and Switch | 96 Ohms | 1.5 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 1.2 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 12 VDC | 7 ms | 125 mA | Resistor Sealed - Fully | 8.4 VDC | 30 A |

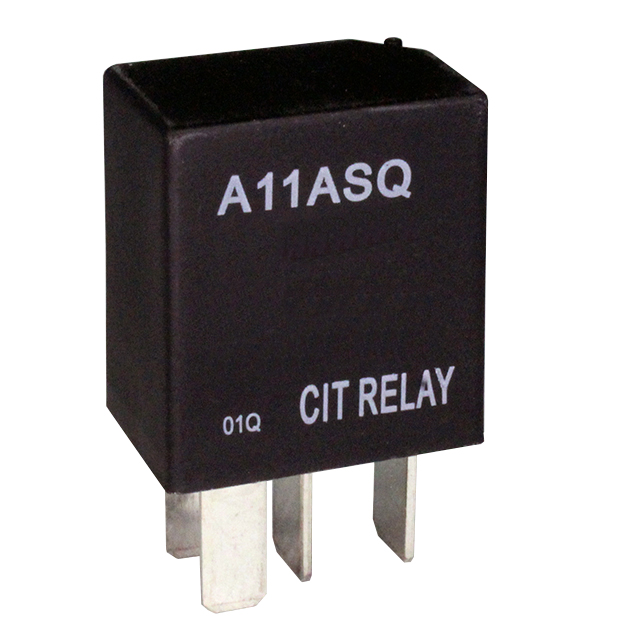

 CIT Relay and Switch | 384 Ohms | 1.5 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 2.4 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 24 VDC | 7 ms | 62.5 mA | Resistor Sealed - Fully | 18 VDC | 30 A |
 CIT Relay and Switch | 480 Ohms | 1.2 W | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 85 °C | -40 C | 2.4 VDC | Non Latching | 0.187 in 4.7 mm | Plug In Quick Connect | Socketable | 75 VDC | 10 ms | 24 VDC | 7 ms | 50 mA | Resistor Sealed - Fully | 18 VDC | 30 A |
