1.3-W, stereo, analog input Class-AB audio amplifier
Key Features
• Available in Space-Saving 0.4mm Pitch DSBGA PackageUltra Low Current Shutdown ModeBTL Output Can Drive Capacitive LoadsImproved Click and Pop Circuitry Eliminates Noise during Turn-On and Turn-Off Transitions2.4 - 5.5V OperationNo Output Coupling Capacitors, Snubber Networks or Bootstrap Capacitors RequiredUnity-Gain StableExternal Gain Configuration CapabilityWSON Package: 0.5mm Pitch, 3 x 3 mmKey SpecificationsPSRR at 3.6V (217Hz & 1kHz): 75 dBOutput Power at 5.0V, 1% THD+N, 8Ω: 1.3 W (typ)Output Power at 3.6V, 1% THD+N, 8Ω: 625 mW (typ)Shutdown Current: 0.01µA (typ)All trademarks are the property of their respective owners.Available in Space-Saving 0.4mm Pitch DSBGA PackageUltra Low Current Shutdown ModeBTL Output Can Drive Capacitive LoadsImproved Click and Pop Circuitry Eliminates Noise during Turn-On and Turn-Off Transitions2.4 - 5.5V OperationNo Output Coupling Capacitors, Snubber Networks or Bootstrap Capacitors RequiredUnity-Gain StableExternal Gain Configuration CapabilityWSON Package: 0.5mm Pitch, 3 x 3 mmKey SpecificationsPSRR at 3.6V (217Hz & 1kHz): 75 dBOutput Power at 5.0V, 1% THD+N, 8Ω: 1.3 W (typ)Output Power at 3.6V, 1% THD+N, 8Ω: 625 mW (typ)Shutdown Current: 0.01µA (typ)All trademarks are the property of their respective owners.

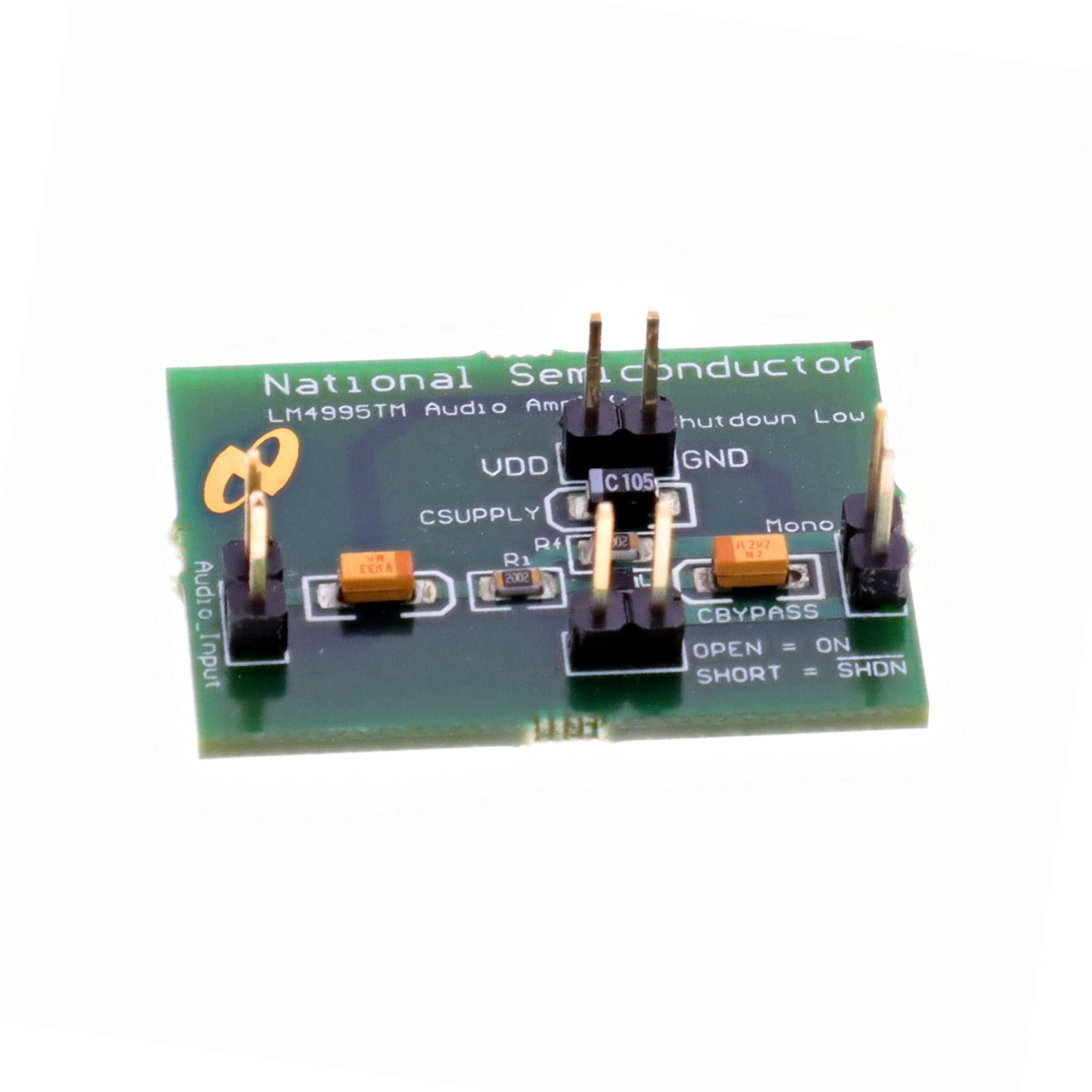

Description
AI
The LM4995 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1.2W of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a 5VDCpower supply.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. The LM4995 does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobile phone and other low voltage applications where minimal power consumption is a primary requirement.
The LM4995 features a low-power consumption shutdown mode, which is achieved by driving the shutdown pin with logic low. Additionally, the LM4995 features an internal thermal shutdown protection mechanism.
The LM4995 contains advanced click and pop circuitry which eliminates noise which would otherwise occur during turn-on and turn-off transitions.
The LM4995 is unity-gain stable and can be configured by external gain-setting resistors.
The LM4995 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1.2W of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a 5VDCpower supply.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. The LM4995 does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobile phone and other low voltage applications where minimal power consumption is a primary requirement.
The LM4995 features a low-power consumption shutdown mode, which is achieved by driving the shutdown pin with logic low. Additionally, the LM4995 features an internal thermal shutdown protection mechanism.
The LM4995 contains advanced click and pop circuitry which eliminates noise which would otherwise occur during turn-on and turn-off transitions.
The LM4995 is unity-gain stable and can be configured by external gain-setting resistors.
