9002-1033 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

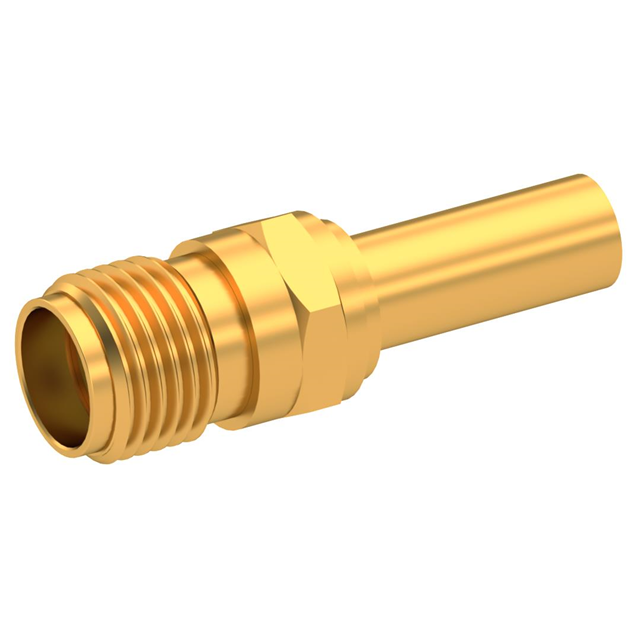

SMA / STRAIGHT JACK FEMALE SOLDE
| Part | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Voltage Rating | Mounting Type | Connector Style | Number of Ports | Center Contact Material | Impedance | Frequency - Max [Max] | Fastening Type | Connector Type | Contact Termination | Shield Termination | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | 250 V | Free Hanging (In-Line) | SMA | 1 | Beryllium Copper | 50 Ohms | 12.4 GHz | Threaded | Female Socket Jack | Solder | Crimp | Gold | 188 316 RG-174 |
