DEML09 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

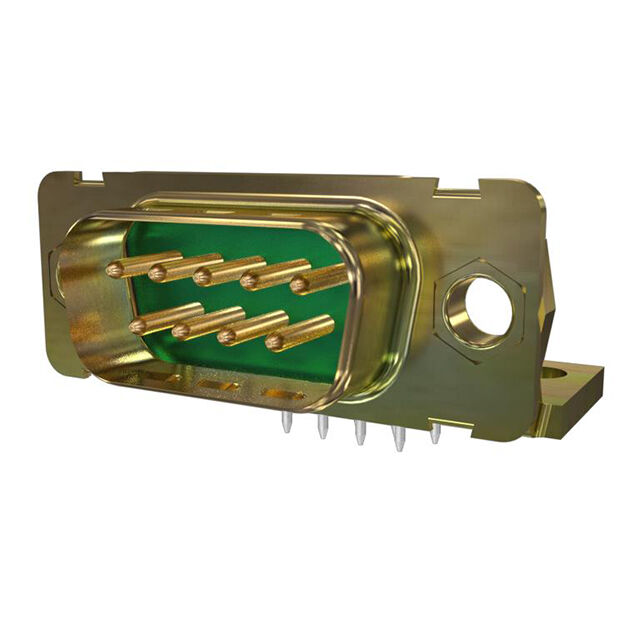

CONN D-SUB PLUG 9POS R/A SOLDER
| Part | Connector Type | Contact Type | Material Flammability Rating | Number of Rows | Number of Positions | Features | Flange Feature | Voltage Rating | Mounting Type | Dielectric Material | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Connector Style | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Current Rating (Amps) | Shell Material, Finish | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Male Pins Plug | Signal | UL94 V-0 | 2 | 9 | Mounting Brackets | Housing/Shell (M3) | 300 VDC | Through Hole Right Angle | Thermoplastic | 0.406 in | 10.3 mm | DE E | 1 | Brass | D-Sub | Gold | -55 °C | 125 °C | Solder | 7.5 A | Steel Yellow Cadmium Plated | |
Amphenol ICC (FCI) | Male Pins Plug | Signal | UL94 V-0 | 2 | 9 | Housing/Shell (M3) | Free Hanging (In-Line) | DE E | 1 | Brass | D-Sub | Gold | -55 °C | 155 °C | 7.5 A | Steel Yellow Cadmium Plated | Harsh Environment |
