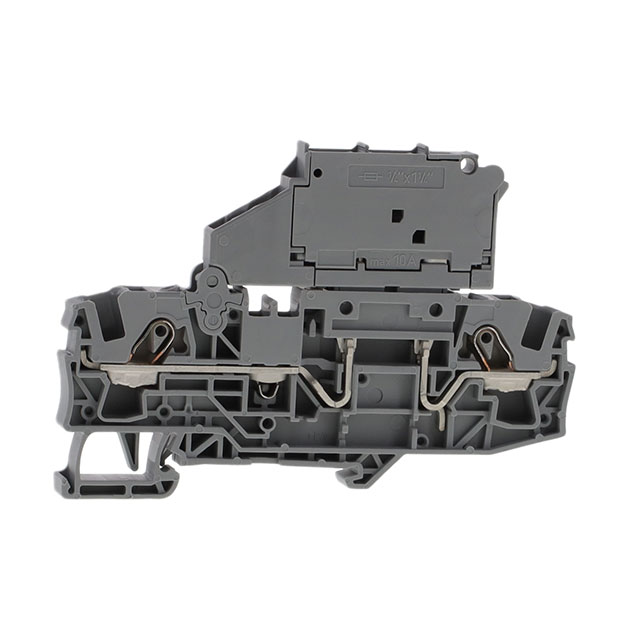

FUSED TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², CLAMP, 10 A
| Part | Stripping Length [Max] | Stripping Length [Min] | Material - Insulation | Current - IEC | Termination Style | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Disconnect Type | Type | Color | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Fuse Type [x] | Fuse Type [y] | Terminal - Width [y] | Number of Positions | Voltage - UL | Voltage - IEC | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WAGO Corporation | 15 mm | 13 mm | Nylon 6/6 Polyamide (PA66) | 10 A | Push In Spring | 8 AWG | 14 AWG | Fuse | Disconnect | Gray | 1 mm² | 10 mm² | 0.25 in | 7.5 mm | 2 | 30 V | 800 V | 1 |
