ASP084 Series

Catalog

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Contact Material	Material Flammability Rating	Insulation Height	Insulation Height	Ingress Protection	Positions Per Level	Pitch	Pitch	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Mounting Type	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Plug Wire Entry	Current - UL	Number of Positions	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Voltage - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level [custom]
METZ CONNECT USA Inc. ASP0840906	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	9	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	9	Green	28 AWG	16 AWG	Plug Female Sockets	150 V

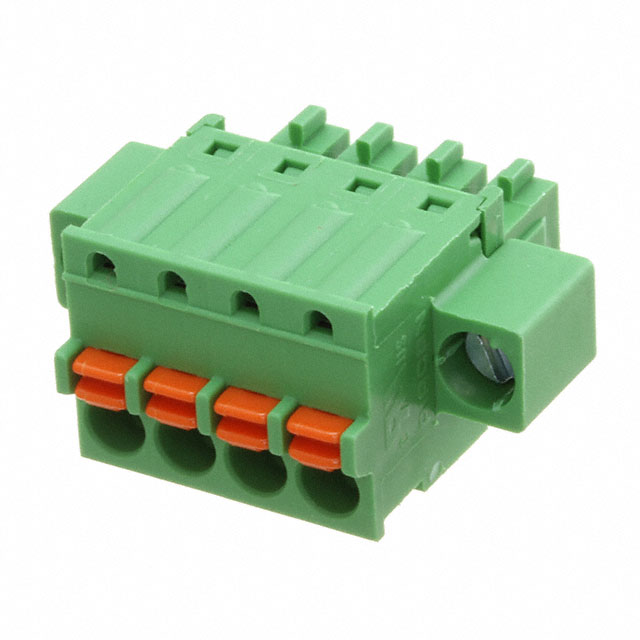

METZ CONNECT USA Inc. ASP0840406	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	4	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	4	Green	28 AWG	16 AWG	Plug Female Sockets	150 V

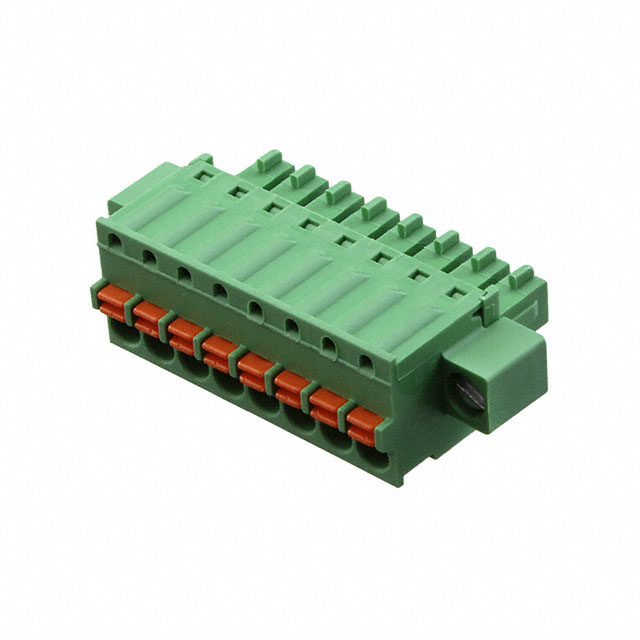

METZ CONNECT USA Inc. ASP0840806	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	8	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	8	Green	28 AWG	16 AWG	Plug Female Sockets	150 V

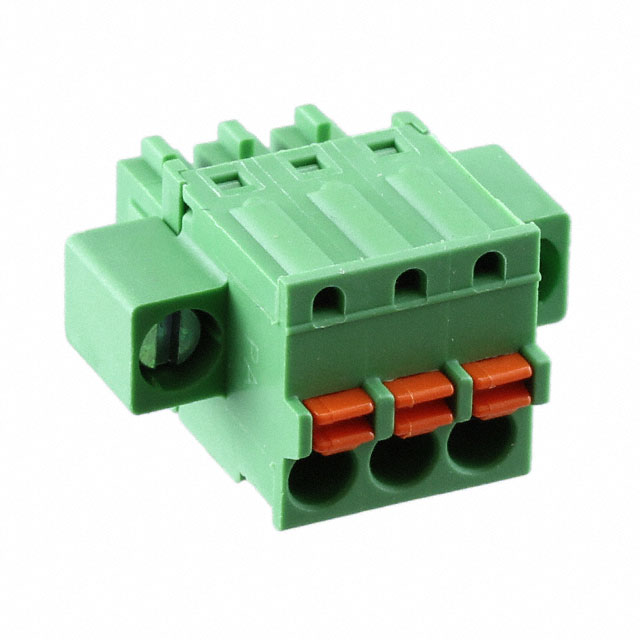

METZ CONNECT USA Inc. ASP0840306	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	3	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A		Green	28 AWG	16 AWG	Plug Female Sockets	150 V	1.5 mm˛	0.08 mm˛
METZ CONNECT USA Inc. ASP0841206	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	12	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	12	Green	28 AWG	16 AWG	Plug Female Sockets	150 V
METZ CONNECT USA Inc. ASP0840706	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20		3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	7	Green	28 AWG	16 AWG	Plug Female Sockets	150 V			7
METZ CONNECT USA Inc. ASP0841006	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	10	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	10	Green	28 AWG	16 AWG	Plug Female Sockets	150 V

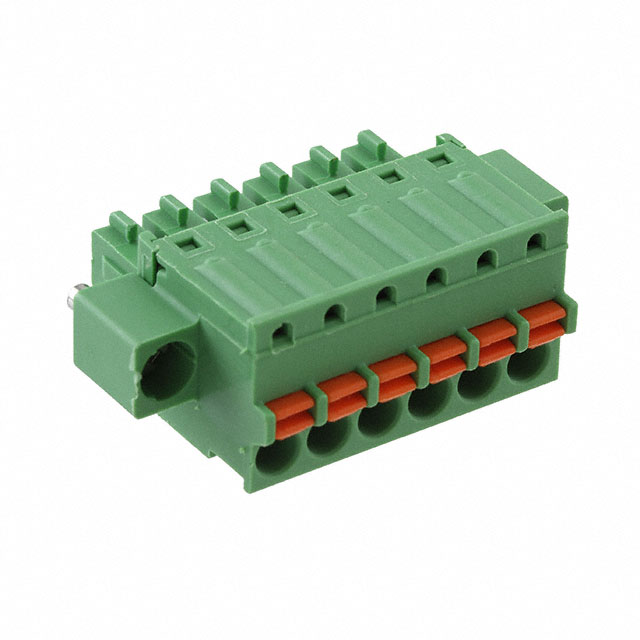

METZ CONNECT USA Inc. ASP0840606	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	6	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	6	Green	28 AWG	16 AWG	Plug Female Sockets	150 V

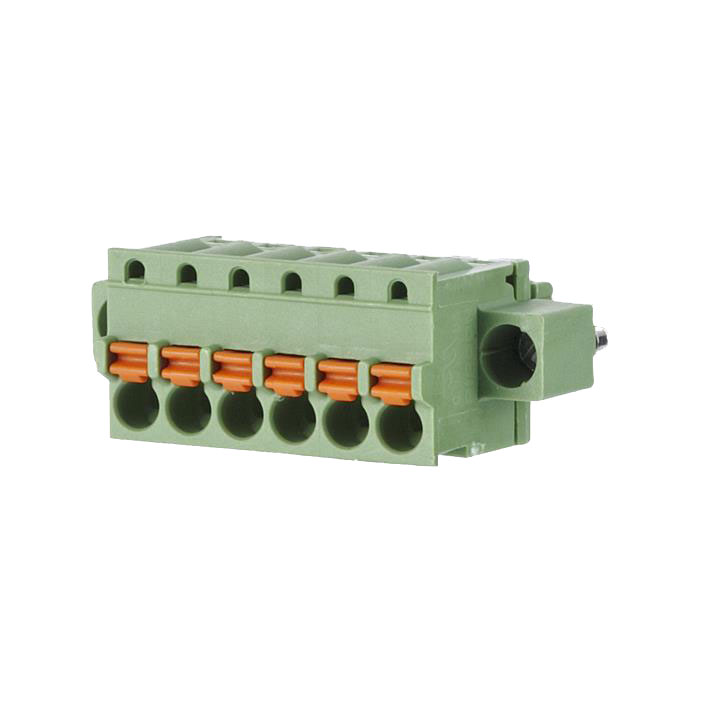

METZ CONNECT USA Inc. ASP0840506	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	5	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	5	Green	28 AWG	16 AWG	Plug Female Sockets	150 V	1.5 mm˛	0.08 mm˛
METZ CONNECT USA Inc. ASP0841106	Copper Alloy	UL94 V-0	12.4 mm	0.488 "	IP20	11	3.81 mm	0.15 in	Tin	-40 C	105 ░C	1	Free Hanging (In-Line)	Mating Flange	0.08 mm²	1.5 mm²	Screwless - Spring Cage Tension Clamp	180 °	8 A	11	Green	28 AWG	16 AWG	Plug Female Sockets	150 V
