SN74LV4052A-Q1 Series

Automotive, 5V 4:1 two-channel analog multiplexer

Catalog

Automotive, 5V 4:1 two-channel analog multiplexer

Part	Current - Leakage (IS(off)) (Max) [Max]	Crosstalk	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Mounting Type	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max) [Max]	Switch Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Package / Case	Package / Case	Package / Case	Channel-to-Channel Matching (ΔRon)	Supplier Device Package	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Number of Circuits	Channel-to-Channel Matching (ΔRon) [Max]	Package / Case [x]	Package / Case [y]	Grade	Qualification
Texas Instruments SN74LV4052AN	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Through Hole	4:1	75 Ohm	SP4T	14 ns	14 ns	0.3 in	16-DIP	7.62 mm	700 mOhm	16-PDIP	0.5 pF	13.1 pF	2
Texas Instruments CLV4052ATPWRG4Q1	1 µA	-45 dB	5.5 V	2 V	105 °C	-40 °C	50 MHz	Surface Mount	4:1	100 Ohms	SP4T				16-TSSOP			16-TSSOP			2	20 Ohm	0.173 in	4.4 mm	Automotive	AEC-Q100
Texas Instruments SN74LV4052APWT	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Surface Mount	4:1	75 Ohm	SP4T	14 ns	14 ns		16-TSSOP		700 mOhm	16-TSSOP	0.5 pF	13.1 pF	2		0.173 in	4.4 mm
Texas Instruments SN74LV4052ADGVR	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Surface Mount	4:1	75 Ohm	SP4T	14 ns	14 ns		16-TFSOP		700 mOhm	16-TVSOP	0.5 pF	13.1 pF	2		0.173 in	4.4 mm
Texas Instruments SN74LV4052ANSR	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Surface Mount	4:1	75 Ohm	SP4T	14 ns	14 ns	0.209 "	16-SOIC	5.3 mm	700 mOhm	16-SO	0.5 pF	13.1 pF	2
Texas Instruments SN74LV4052ARGYR	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Surface Mount	4:1	75 Ohm	SP4T	14 ns	14 ns		16-VFQFN Exposed Pad		700 mOhm	16-VQFN (4x3.5)	0.5 pF	13.1 pF	2
Texas Instruments SN74LV4052ATDRQ1	1 µA	-45 dB	5.5 V	2 V	105 °C	-40 °C	50 MHz	Surface Mount	4:1	100 Ohms	SP4T				16-SOIC			16-SOIC			2	20 Ohm	0.154 in	3.9 mm	Automotive	AEC-Q100
Texas Instruments SN74LV4052ADR	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Surface Mount	4:1	75 Ohm	SP4T	14 ns	14 ns		16-SOIC		700 mOhm	16-SOIC	0.5 pF	13.1 pF	2		0.154 in	3.9 mm
Texas Instruments SN74LV4052APWR-M
Texas Instruments SN74LV4052APWG4	100 nA	-45 dB	5.5 V	2 V	85 °C	-40 °C	50 MHz	Surface Mount	4:1	75 Ohm	SP4T	14 ns	14 ns		16-TSSOP		700 mOhm	16-TSSOP	0.5 pF	13.1 pF	2		0.173 in	4.4 mm

Catalog

Automotive, 5V 4:1 two-channel analog multiplexer

Key Features

• Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C4BSupports mixed-mode voltage operation on all portsFast switchingHigh on-off output-voltage ratioLow crosstalk between switchesExtremely low input currentQualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C4BSupports mixed-mode voltage operation on all portsFast switchingHigh on-off output-voltage ratioLow crosstalk between switchesExtremely low input current

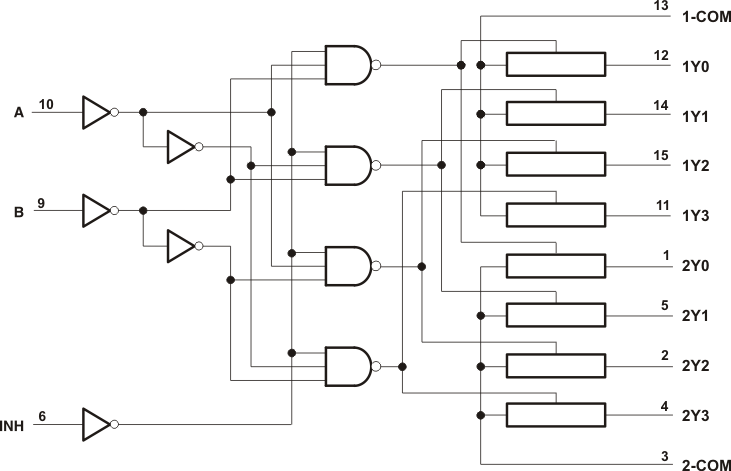

Description

These dual 4-channel CMOS analog multiplexers and demultiplexers are designed for 1.0V to 5.5V VCC operation. The SN7LV4052A-Q1 devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5V (peak). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. These dual 4-channel CMOS analog multiplexers and demultiplexers are designed for 1.0V to 5.5V VCC operation. The SN7LV4052A-Q1 devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5V (peak). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
