R12163 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

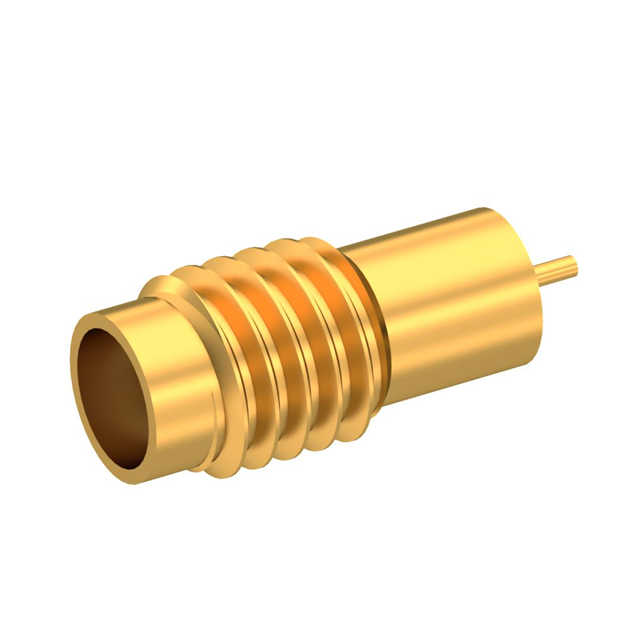

SSMA / THREAD-IN JACK RECEPTACLE
| Part | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Finish | Contact Termination | Mounting Type | Impedance | Fastening Type | Frequency - Max [Max] | Connector Style | Center Contact Material | Shield Termination | Housing Color | Connector Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | 155 C | -55 C | 250 V | Gold | Solder | Through Hole | 50 Ohms | Threaded | 18 GHz | SSMA | Beryllium Copper | Solder | Gold | Female Socket Jack | 1 |
