PHJ.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT MALE 6P GOLD SLDR CUP

Part	Color	Shielding	Primary Material	Shell Material	Ingress Protection	Shell Size - Insert	Backshell Material, Plating	Mounting Type	Insert Material	Shell Finish	Fastening Type	Current Rating (Amps)	Number of Positions	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating	Orientation [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Material Flammability Rating	Connector Type	Contact Material	Cable Opening [Min]	Cable Opening [Max]	Termination

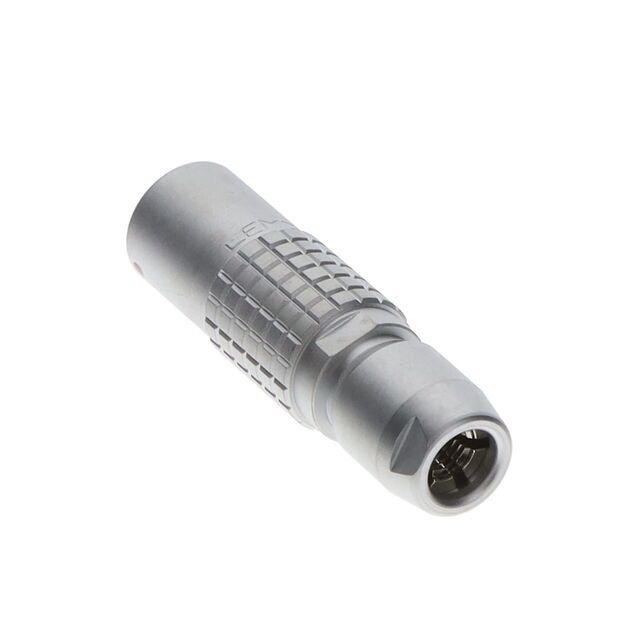

LEMO PHJ.1B.306.CLAD35	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	306	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	7 A	6	0.122 in	0.165 in	4.2 mm	3.1 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass
LEMO PHJ.1B.305.CYCD72Z	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	305	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	9 A	5			7.2 mm	6.2 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass	0.244 in	0.283 in	Crimp
LEMO PHJ.1B.304.CLAD72Z	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	304	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	10 A	4			7.2 mm	6.2 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass	0.244 in	0.283 in
LEMO PHJ.1B.308.CYCD42Z	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	308	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	5 A	8	0.122 in	0.165 in	4.2 mm	3.1 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass			Crimp
LEMO PHJ.1B.306.CYCD72	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	306	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	7 A	6			7.2 mm	6.2 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass	0.244 in	0.283 in	Crimp
LEMO PHJ.1B.304.CYCD72	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	304	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	10 A	4			7.2 mm	6.2 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass	0.244 in	0.283 in	Crimp
LEMO PHJ.1B.306.CLAD76Z	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	306	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	7 A	6	0.283 "	0.299 in	7.6 mm	7.2 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass
LEMO PHJ.1B.304.CYCD62	Silver	Shielded	Metal	Brass	IP50 - Dust Protected	304	Brass Chrome	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Chrome	Push-Pull	10 A	4	0.205 in	0.244 "	6.2 mm	5.2 mm	39.4 µin	1 µm	Gold	J	-55 C	250 °C	Backshell	UL94 V-0	Receptacle Male Pins	Brass			Crimp
