R14173 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

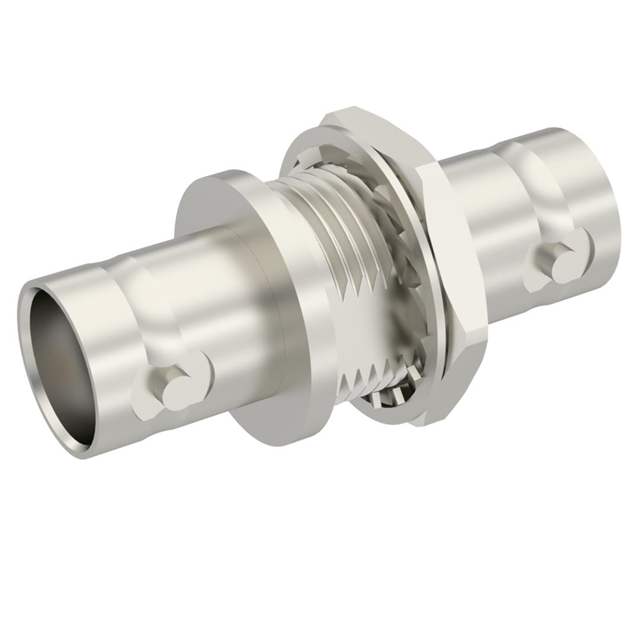

BNC / BULKHEAD FEMALE-FEMALE ADA
| Part | Mating Cycles | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Material | Adapter Series | Conversion Type | Mounting Feature | Convert To (Adapter End) | Mounting Type | Impedance | Fastening Type | Frequency - Max [Max] | Center Gender | Style | Convert From (Adapter End) | Adapter Type | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Nickel | Beryllium Copper | BNC to BNC | Same Series | Bulkhead | BNC Jack Female Socket | Panel Mount | 50 Ohms | Bayonet Lock | 4 GHz | Female to Female | Straight | BNC Jack Female Socket | Jack to Jack | Gold |
 Radiall USA, Inc. | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Nickel | Beryllium Copper | BNC to BNC | Same Series | Bulkhead | BNC Jack Female Socket | Panel Mount | 50 Ohms | Bayonet Lock | 4 GHz | Female to Female | Straight | BNC Jack Female Socket | Jack to Jack | Gold |
