ED125 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

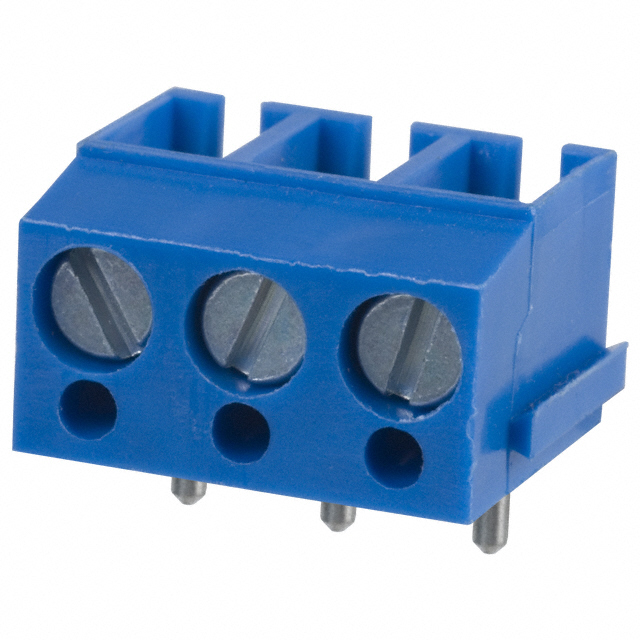

TERM BLK 3POS TOP ENT 5.08MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Screw Thread | Contact Material - Plating | Housing Material | Number of Levels | Voltage | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color | Features | Wire Termination | Positions Per Level | Pitch | Pitch | Current | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | 4.4 Lb-In | 0.5 Nm | M3 | Brass | Polyamide (PA) Nylon | 1 | 300 VDC | Through Hole | 14 AWG | 22 AWG | Blue | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 3 | 5.08 mm | 0.2 in | 15 A | Vertical with Board |
 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | 4.4 Lb-In | 0.5 Nm | M3 | Brass | Polyamide (PA) Nylon | 1 | 300 VDC | Through Hole | 14 AWG | 22 AWG | Blue | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 4 | 5.08 mm | 0.2 in | 15 A | Vertical with Board |
