581-M15 Series

Catalog

D SUB CONNECTOR, MICRO D, PLUG, 581 M SERIES, 15 CONTACTS, SOLDER

Part	Voltage Rating	Contact Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Style	Connector Type	Mounting Type	Contact Finish	Number of Positions	Material Flammability Rating	Contact Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Flange Feature	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Backset Spacing	Backset Spacing	Shell Material, Finish	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Current Rating (Amps)	Features

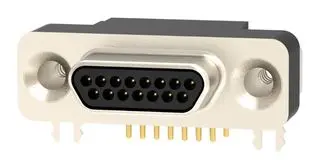

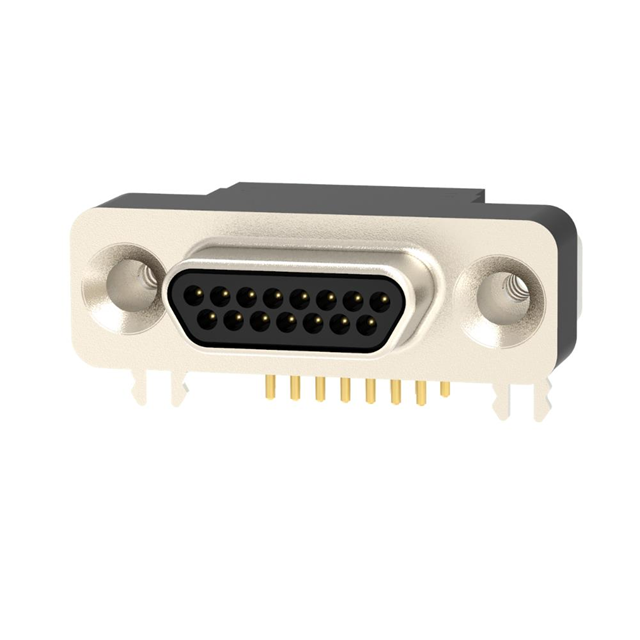

NorComp Inc. 581-M15-113L461	60 VDC	Brass	Liquid Crystal Polymer (LCP)	125 °C	-40 C	Black	D-Type Micro-D	Plug Male Pins	Panel Mount Right Angle Through Hole	Gold	15	UL94 V-0	Signal	Solder	0.38 µm	15 µin	2	Board Side	0.043 in	0.05 in	0.22 in	5.6 mm	Nickel Plated	Steel	Brass	2 A	Board Lock Shielded

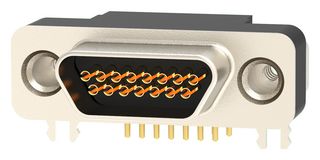

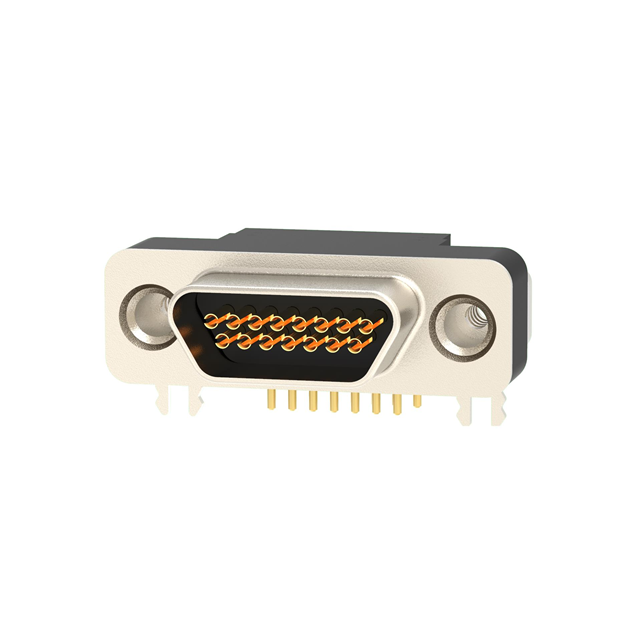

NorComp Inc. 581-M15-213L461	60 VDC	Brass	Liquid Crystal Polymer (LCP)	125 °C	-40 C	Black	D-Type Micro-D	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Gold	15	UL94 V-0	Signal	Solder	0.38 µm	15 µin	2	Board Side	0.043 in	0.05 in	0.22 in	5.6 mm	Nickel Plated	Steel	Brass	2 A	Board Lock Shielded
NorComp Inc. 581-M15-213L462	60 VDC	Brass	Liquid Crystal Polymer (LCP)	125 °C	-40 C	Black	D-Type Micro-D	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Gold	15	UL94 V-0	Signal	Solder	0.76 Ám	30 Áin	2	Board Side	0.043 in	0.05 in	0.22 in	5.6 mm	Nickel Plated	Steel	Brass	2 A	Board Lock Shielded
NorComp Inc. 581-M15-113L462	60 VDC	Brass	Liquid Crystal Polymer (LCP)	125 °C	-40 C	Black	D-Type Micro-D	Plug Male Pins	Panel Mount Right Angle Through Hole	Gold	15	UL94 V-0	Signal	Solder	0.76 Ám	30 Áin	2	Board Side	0.043 in	0.05 in	0.22 in	5.6 mm	Nickel Plated	Steel	Brass	2 A	Board Lock Shielded
