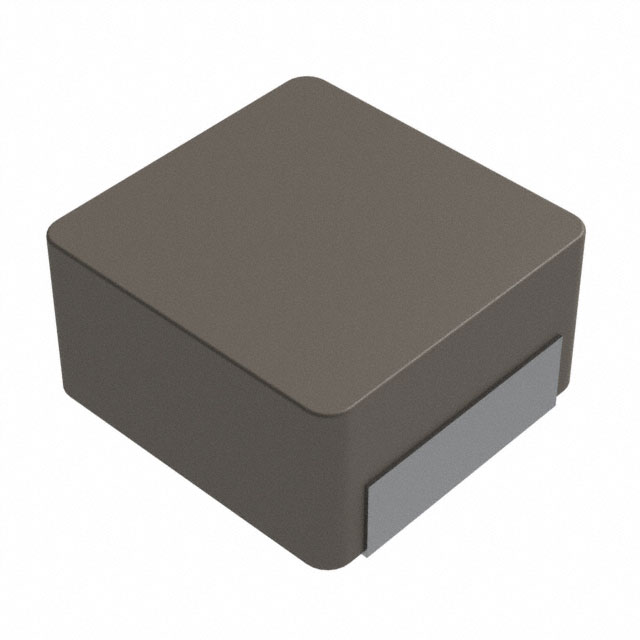

VCHA042A Series

Catalog

FIXED IND 2.2UH 5.8A 23MOHM SMD

Part	Shielding	DC Resistance (DCR) [Max]	Current Rating (Amps)	Material - Core	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Mounting Type	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Saturation (Isat)	Inductance Frequency - Test	DC Resistance (DCR)
Delta Electronics/Cyntec VCHA042A-2R2MS6	Shielded Unshielded	23 mOhm	5.8 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	2.2 µH	-55 C	165 °C	Nonstandard	4.5 A	100 kHz
Delta Electronics/Cyntec VCHA042A-4R7MS6	Shielded Unshielded		4 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	4.7 ÁH	-55 C	165 °C	Nonstandard	3.2 A	100 kHz	53.8 mOhm
Delta Electronics/Cyntec VCHA042A-1R0MS6	Shielded Unshielded		8.9 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	1 µH	-55 C	165 °C	Nonstandard	6.7 A	100 kHz	10.5 mOhm
Delta Electronics/Cyntec VCHA042A-3R3MS6	Shielded Unshielded	36.8 mOhm	4.6 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	3.3 µH	-55 C	165 °C	Nonstandard	3.4 A	100 kHz
Delta Electronics/Cyntec VCHA042A-5R6MS6	Shielded Unshielded	71.1 mOhm	3.4 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	5.6 µH	-55 C	165 °C	Nonstandard	2.5 A	100 kHz
Delta Electronics/Cyntec VCHA042A-6R8MS6	Shielded Unshielded	92.5 mOhm	2.9 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	6.8 µH	-55 C	165 °C	Nonstandard	2.2 A	100 kHz
Delta Electronics/Cyntec VCHA042A-1R5MS6	Shielded Unshielded		7.3 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	1.5 µH	-55 C	165 °C	Nonstandard	5.3 A	100 kHz
Delta Electronics/Cyntec VCHA042A-100MS6	Shielded Unshielded		2.5 A	Metal	20 %	2.1 mm	0.083 in	AEC-Q200	Surface Mount	10 µH	-55 C	165 °C	Nonstandard	2 A	100 kHz	129 mOhm
