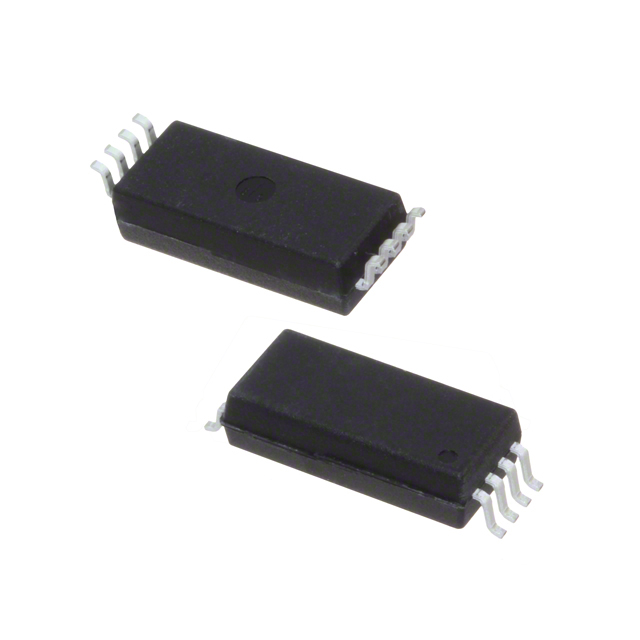

ACNT-H61 Series
Manufacturer: Broadcom Limited
Beta
⌘K
CURRENT SENSOR IC, LINEAR, SOIC-8 ROHS COMPLIANT: YES
| Part | Mounting Type | Number of Channels [custom] | Current - DC Forward (If) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Common Mode Transient Immunity (Min) [Min] | Package / Case | Voltage - Isolation | Propagation Delay tpLH / tpHL (Max) [Max] | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Output Type | Voltage - Forward (Vf) (Typ) | Data Rate | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output / Channel | Supplier Device Package | Rise / Fall Time (Typ) | Input Type | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

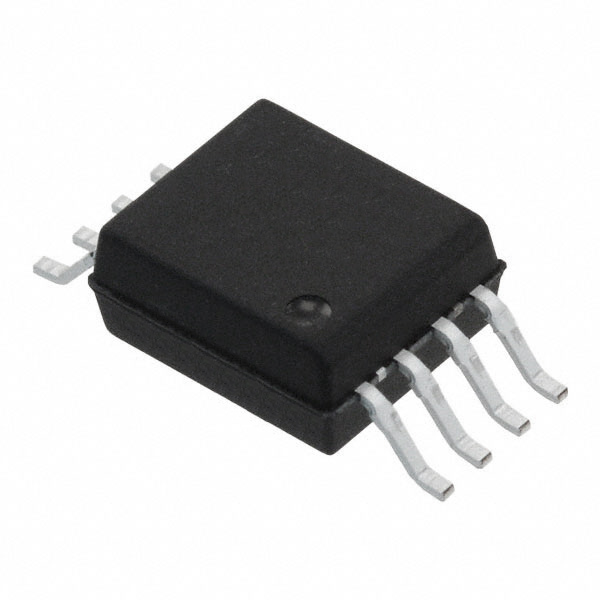

 Broadcom Limited | Surface Mount | 1 | 10 mA | -40 C | 105 ░C | 20 kV/µs | 8-SOIC (0.535" 13.60mm Width) | 7500 Vrms | 100 ns | 1 | 0 | Push-Pull Totem Pole | 1.38 V | 10 Mbps | 5.5 V | 2.7 V | 10 mA | 8-SO Stretched | 10 ns | DC | |
 Broadcom Limited | Surface Mount | 1 | 10 mA | -40 C | 105 ░C | 20 kV/µs | 8-SOIC (0.535" 13.60mm Width) | 7500 Vrms | 100 ns | 1 | 0 | Push-Pull Totem Pole | 1.38 V | 10 Mbps | 10 mA | 8-SO Stretched | 10 ns | DC | 5.5 V | ||
 Broadcom Limited | Surface Mount | 1 | -40 C | 105 ░C | 20 kV/µs | 8-SOIC (0.535" 13.60mm Width) | 7500 Vrms | 1 | 0 | Push-Pull Totem Pole | 10 Mbps | 5.5 V | 2.7 V | 8-SO Stretched | DC | ||||||
 Broadcom Limited | Surface Mount | 1 | -40 C | 105 ░C | 20 kV/µs | 8-SOIC (0.535" 13.60mm Width) | 7500 Vrms | 1 | 0 | Push-Pull Totem Pole | 10 Mbps | 5.5 V | 2.7 V | 8-SO Stretched | DC |
