293655 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

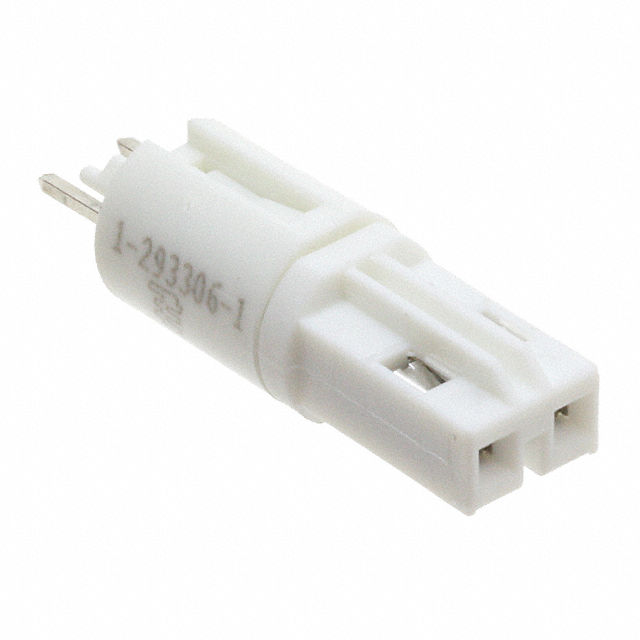

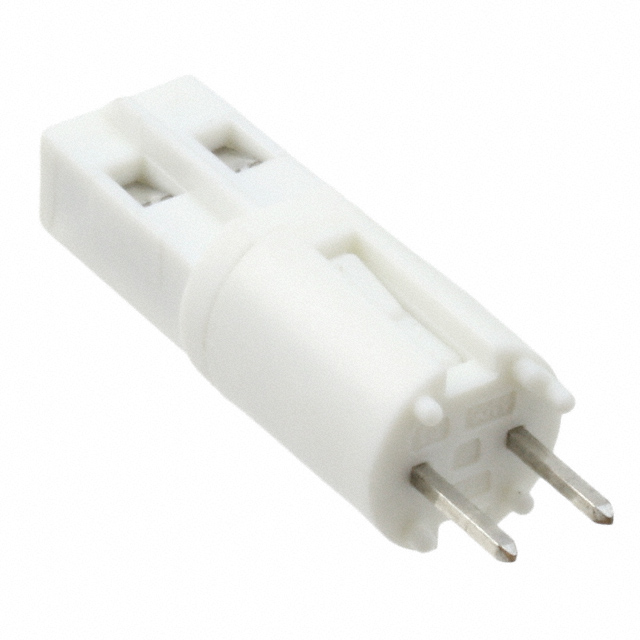

CONN SSL PLUG 2POS 3.7MM SOLDER
| Part | Connector Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Current Rating (Amps) | Voltage Rating | Style | Features | Housing Material | Housing Color | Termination | Mounting Type | Contact Finish | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Female Sockets Plug | Copper Alloy | -40 °C | 120 °C | 2 | 6 A | 125 VDC | Board to Cable/Wire | Board Guide Keying HV-3 | Polybutylene Terephthalate (PBT) Glass Filled | White | Solder | Through Hole | Tin | 0.146 in | 3.7 mm |
 TE Connectivity Raychem Cable Protection | Female Sockets Plug | Copper Alloy | -40 °C | 120 °C | 2 | 7 A | 42 VDC | Board to Cable/Wire | Board Guide Keying LV-2 | Polybutylene Terephthalate (PBT) Glass Filled | White | Solder | Through Hole | Tin | 0.146 in | 3.7 mm |
 TE Connectivity Raychem Cable Protection | Female Sockets Plug | Copper Alloy | -40 °C | 120 °C | 2 | 6 A | 125 VDC | Board to Cable/Wire | Board Guide Keying HV-2 | Polybutylene Terephthalate (PBT) Glass Filled | White | Solder | Through Hole | Tin | 0.146 in | 3.7 mm |
