D2824 Series
Manufacturer: Harwin Inc.
Beta
⌘K

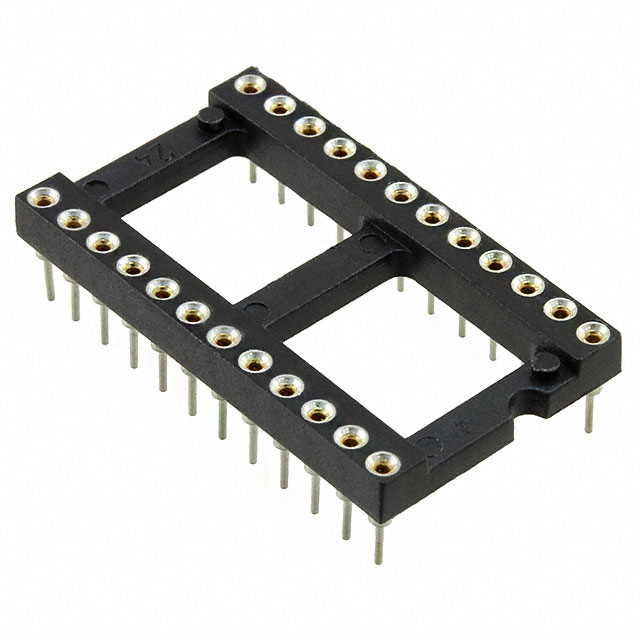

SOCKET IC, DIL, 24WAY, TUBE 17, PK17
| Part | Material Flammability Rating | Contact Resistance | Termination Post Length [x] | Termination Post Length [x] | Current Rating (Amps) | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Housing Material | Contact Finish - Post | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Type [custom] | Type [custom] | Type | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Mounting Type | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Features | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | UL94 V-0 | 10 mOhm | 3.2 mm | 0.126 in | 1 A | Gold | 5 µm | 196.9 µin | -55 C | 125 °C | Solder | Plastic | Tin | 0.1 in | 2.54 mm | Brass | 15.24 mm | 0.6 in | DIP | 12 | 2 | 24 | Through Hole | Beryllium Copper | 0.1 " | 2.54 mm | Open Frame | Flash |
