PE0805J Series

Manufacturer: YAGEO

Catalog

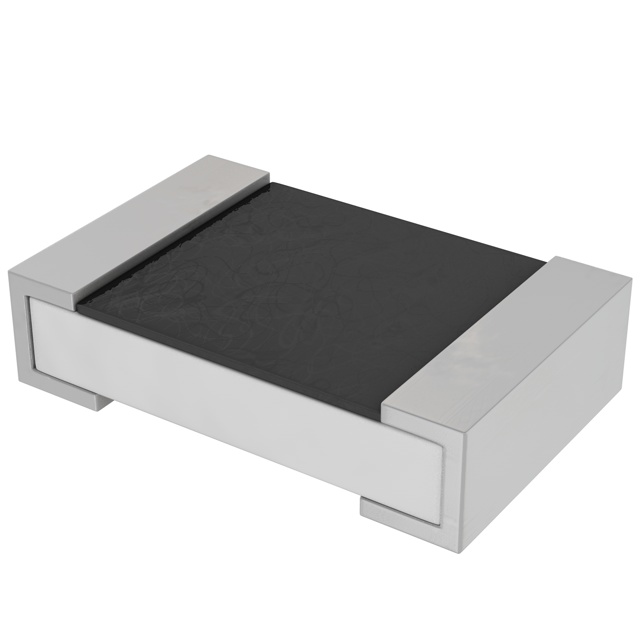

RES 0.03 OHM 5% 1/2W 0805

Part	Composition	Ratings	Features	Package / Case	Resistance	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient
YAGEO PE0805JRF470R03L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	0.03 Ohms	2	0.5 W	0.5 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF7T0R05L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	0.05 Ohms	2	0.333 W	0.3333333333333333 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF470R007L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	7 mOhms	2	0.5 W	0.5 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF470R01L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	10 mOhms	2	0.5 W	0.5 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF070R007L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	7 mOhms	2	0.125 W	0.125 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF070R01L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	10 mOhms	2	0.125 W	0.125 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF070R02L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	0.02 Ohms	2	0.125 W	0.125 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF7W0R047L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	47 mOhms	2	0.25 W	0.25 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF470R005L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	5 mOhms	2	0.5 W	0.5 W	0805	0.6 mm	0.024 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
YAGEO PE0805JRF470R47L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	470 mOhms	2	0.5 W	0.5 W	0805	0.65 mm	0.026 in	0.08 "	2.03 mm	1.27 mm	5 %	170 °C	-55 C	100 ppm/°C
