EN3P4F Series

Catalog

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Connector Type	Contact Finish - Mating	Ingress Protection	Termination	Applications	Color	Number of Positions	Mounting Feature	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Orientation	Voltage Rating	Contact Material	Fastening Type	Primary Material	Current Rating (Amps)	Material Flammability Rating	Mounting Type
Switchcraft Inc. EN3P4FCX	Receptacle Female Sockets	Gold	IP66/IP68	Crimp	General Purpose Instrumentation Marine Medical	Black	4	Bulkhead - Front Side Nut	Elastomer	65 °C	-40 °C	Unshielded	Keyed	250 VAC	Copper Alloy	Bayonet Lock	Plastic	7.5 A	UL94 V-0
Switchcraft Inc. EN3P4FPX	Receptacle Female Sockets	Gold	IP66/IP68	Solder	General Purpose Instrumentation Marine Medical	Black	4	Bulkhead - Front Side Nut	Elastomer	65 °C	-40 °C	Unshielded	Keyed	250 VAC	Copper Alloy	Bayonet Lock	Plastic	7.5 A	UL94 V-0	Panel Mount Through Hole
Switchcraft Inc. EN3P4FCKX	Receptacle Female Sockets	Gold	IP66/IP68	Crimp	General Purpose Instrumentation Marine Medical	Black	4	Bulkhead - Front Side Nut	Elastomer	65 °C	-40 °C	Unshielded	Keyed	250 VAC	Copper Alloy	Bayonet Lock	Plastic	7.5 A	UL94 V-0

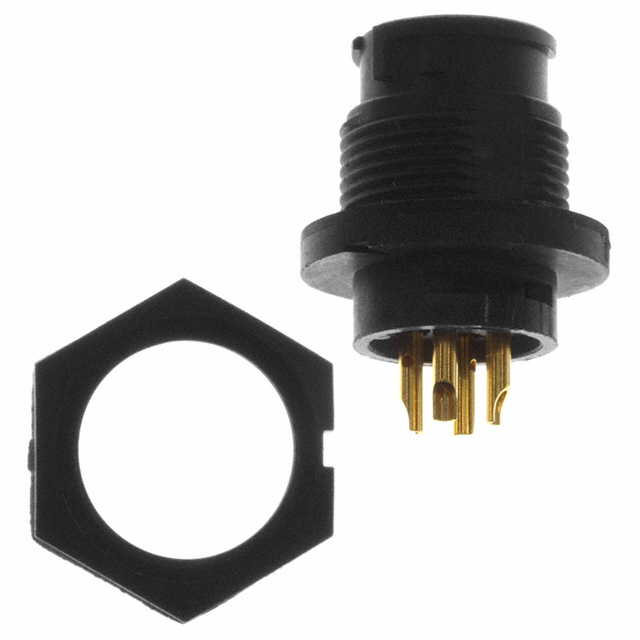

Switchcraft Inc. EN3P4FX	Receptacle Female Sockets	Gold	IP66/IP68		General Purpose Instrumentation Marine Medical	Black	4	Bulkhead - Front Side Nut	Elastomer	65 °C	-40 °C	Unshielded	Keyed	250 VAC	Copper Alloy	Bayonet Lock	Plastic	7.5 A	UL94 V-0
Switchcraft Inc. EN3P4FKX	Receptacle Female Sockets	Gold	IP66/IP68		General Purpose Instrumentation Marine Medical	Black	4	Bulkhead - Front Side Nut	Elastomer	65 °C	-40 °C	Unshielded	Keyed	250 VAC	Copper Alloy	Bayonet Lock	Plastic	7.5 A	UL94 V-0
Switchcraft Inc. EN3P4FRAPCX	Receptacle Female Sockets	Gold	IP66/IP68	Solder	General Purpose Instrumentation Marine Medical	Black	4	Bulkhead - Front Side Nut	Elastomer	65 °C	-40 °C	Unshielded	Keyed	250 VAC	Copper Alloy	Bayonet Lock	Plastic	5 A	UL94 V-0	Panel Mount Right Angle Through Hole
