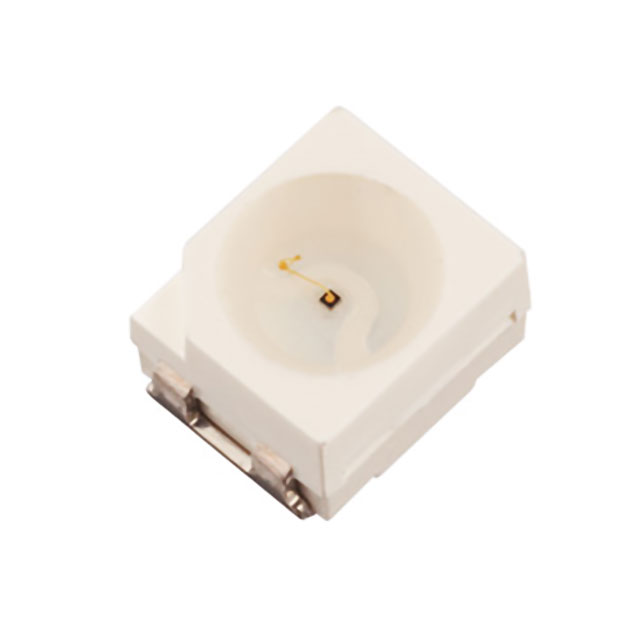

VFHR1104 Series
Manufacturer: Stanley Electric Co
Beta
⌘K
LED RED CLEAR 1608 SMD
| Part | Wavelength - Peak | Configuration | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Package / Case | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Lens Size [diameter] | Current - Test | Color | Lens Style | Mounting Type | Lens Color | Lens Transparency | Supplier Device Package | Height (Max) [z] | Wavelength - Dominant | Height (Max) [z] | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 635 nm | Standard | 1.6 mm | 0.8 mm | 1608 Metric | 0603 | 250 mcd | 1.9 V | 1 mm Dia | 20 mA | Red | Round with Domed Top | Surface Mount | Colorless | Clear | 1608 | 1.15 mm | 626 nm | ||
 Stanley Electric Co | 640 nm | Standard | 3.2 mm | 2.8 mm | 2-PLCC | 140 mcd | 2 V | 2.4 mm Dia | 20 mA | Red | Round with Flat Top | Surface Mount | Colorless | Clear | 2-PLCC | 632 nm | 2.1 mm | 120 ° |
