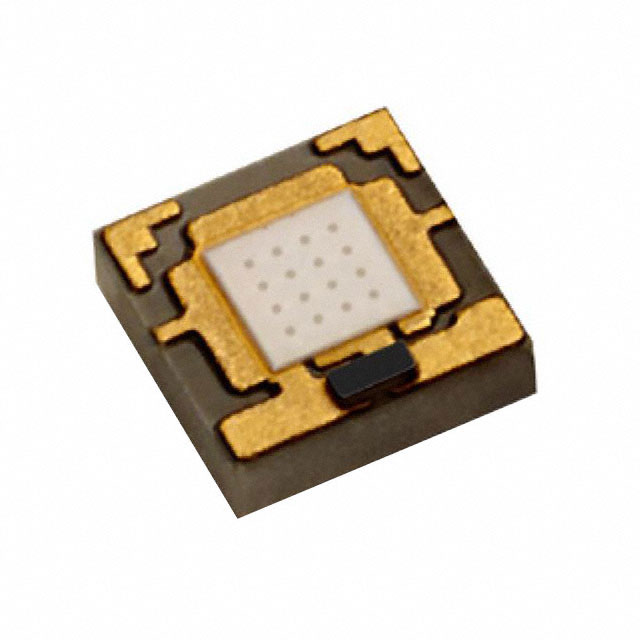

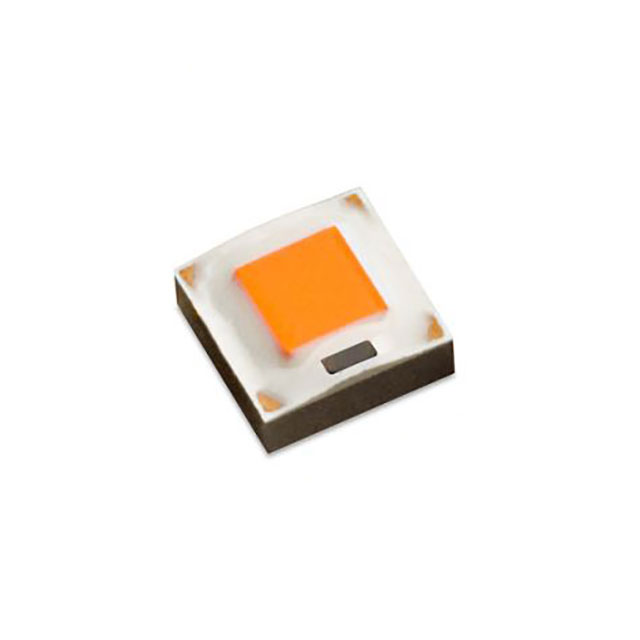

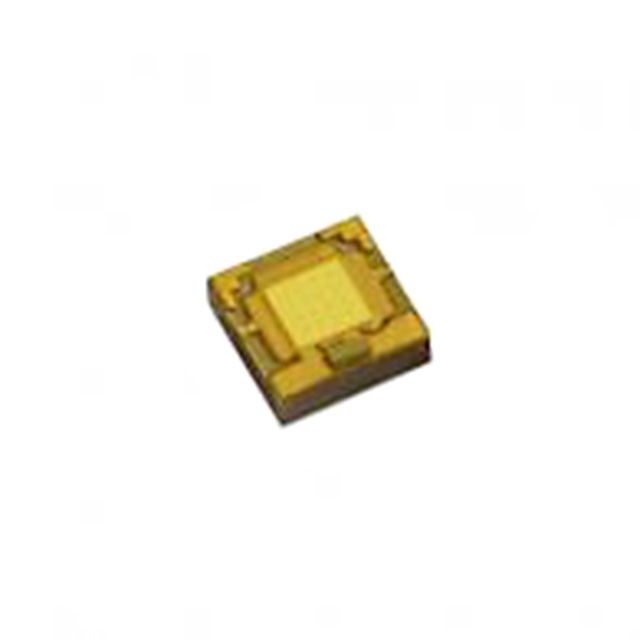

L1CU Series
Manufacturer: Lumileds
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LED SINGLE CHIP RED 1050MA 3-PIN SMD T/R
| Part | Height - Seated (Max) | Viewing Angle | Luminous Flux (Minimum) | Luminous Flux (Maximum) | Luminous Flux | Size / Dimension Width | Size / Dimension Length | Voltage - Forward (Vf) (Typ) | Mounting Type | Color | Current - Test | Current - Max | Package / Case | Package Name | Temperature - Test | Lumens/Watt | Wavelength (Nominal) | Wavelength (Minimum) | Wavelength (Maximum) | Wavelength | Thermal Resistance of Package | CRI (Color Rendering Index) | CCT (K) | Flux (Typical) | Luminous Flux (Typical) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 0.036 in | 120 ° | 150 mW | 280 mW | 240 mW | 0.079 in | 0.079 in | 1.9 V | Surface Mount | Red | 350 mA | 1.05 A | 2-SMD No Lead Exposed Pad | 2-SMD | 85 °C | ||||||||||
Lumileds | 0.036 in | 120 ° | 30 lm | 37 lm | 34 lm | 0.079 in | 0.079 in | 2.05 V | Surface Mount | Red-Orange | 350 mA | 1.05 A | 2-SMD No Lead Exposed Pad | SMD | 85 °C | 47 lm/W | 619 nm | 614 nm | 624 nm | 619 nm | |||||
 Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | 2.75 V | Surface Mount | Neutral White | 350 mA | 1.225 mA | 2-SMD No Lead Exposed Pad | 2-SMD | 113 lm/W | 3.2 °C/W | 70 | 4000 K | 109 lm | |||||||||
Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | 2.75 V | Surface Mount | Warm White | 350 mA | 1.225 mA | 2-SMD No Lead Exposed Pad | 2-SMD | 89 lm/W | 3.2 °C/W | 90 | 3500 K | 86 lm | |||||||||
Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | 2.75 V | Surface Mount | Warm White | 350 mA | 1.225 mA | 2-SMD No Lead Exposed Pad | 2-SMD | 92 lm/W | 3.2 °C/W | 80 | 2200 K | 89 lm | |||||||||
 Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | Surface Mount | Lime | 350 mA | 1.05 A | 3-SMD No Lead | 3-SMD | 85 °C | 122 lm | |||||||||||||
 Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | 2.75 V | Surface Mount | Warm White | 350 mA | 1.225 A | 3-SMD No Lead | 3-SMD | 80 | 2700 K | ||||||||||||
 Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | 2.75 V | Surface Mount | Warm White | 350 mA | 1.225 mA | 2-SMD No Lead Exposed Pad | 2-SMD | 110 lm/W | 3.2 °C/W | 80 | 3500 K | 106 lm | |||||||||
Lumileds | 0.036 in | 120 ° | 19 mW | 320 mW | 260 mW | 0.079 in | 0.079 in | 2.05 V | Surface Mount | Red | 350 mA | 700 mA | 2-SMD No Lead Exposed Pad | 2-SMD | 85 °C | ||||||||||
 Lumileds | 0.036 in | 120 ° | 0.079 in | 0.079 in | 2.75 V | Surface Mount | Cool White | 350 mA | 1.225 A | 3-SMD No Lead | 3-SMD | 133 lm/W | 3.2 °C/W | 70 | 5700 K | 110 lm |
