Standard Circular Connector 2P F PANEL TYPE #16
Standard Circular Connector 2P F PANEL TYPE #16
| Part | Orientation | Shielding | Mounting Feature | Voltage Rating | Contact Material | Number of Positions | Applications | Ingress Protection | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination | Primary Material | Current Rating (Amps) | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

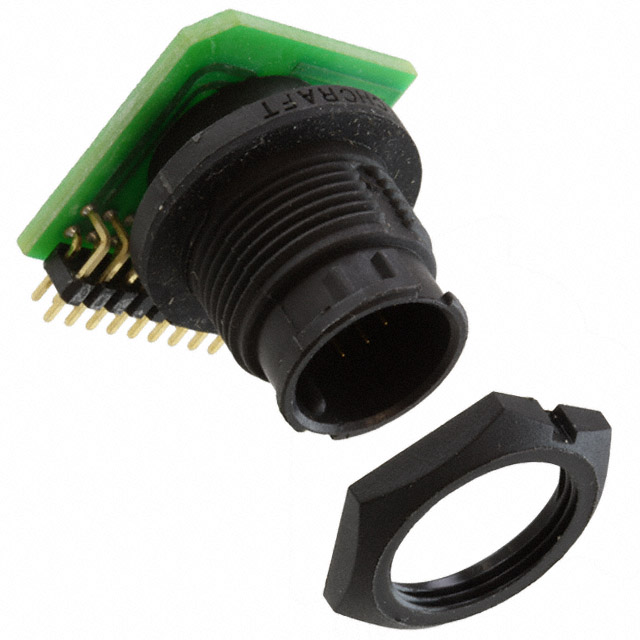

 Switchcraft Inc. | Keyed | Unshielded | Bulkhead - Front Side Nut | 250 VAC | Copper Alloy | 11 | General Purpose Instrumentation Marine Medical | IP66/IP68 | UL94 V-0 | Panel Mount Right Angle Through Hole | Gold | Male Pins Receptacle | Bayonet Lock | 65 °C | -40 °C | Black | Circuit Board Solder | Plastic | 2 A | Elastomer |

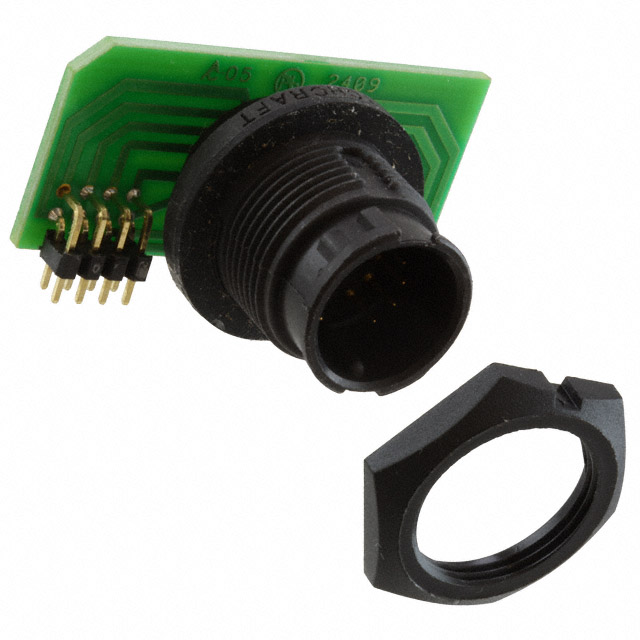

 Switchcraft Inc. | Keyed | Unshielded | Bulkhead - Front Side Nut | 250 VAC | Copper Alloy | 11 | General Purpose Instrumentation Marine Medical | IP66/IP68 | UL94 V-0 | Gold | Male Pins Receptacle | Bayonet Lock | 65 °C | -40 °C | Black | Plastic | 3 A | Elastomer | ||
 Switchcraft Inc. | Keyed | Unshielded | Bulkhead - Front Side Nut | 250 VAC | Copper Alloy | 11 | General Purpose Instrumentation Marine Medical | IP66/IP68 | UL94 V-0 | Panel Mount Right Angle Through Hole | Gold | Receptacle Female Sockets | Bayonet Lock | 65 °C | -40 °C | Black | Circuit Board Solder | Plastic | 2 A | Elastomer |
 Switchcraft Inc. | Keyed | Unshielded | Bulkhead - Front Side Nut | 250 VAC | Copper Alloy | 11 | General Purpose Instrumentation Marine Medical | IP66/IP68 | UL94 V-0 | Panel Mount Right Angle Through Hole | Gold | Male Pins Receptacle | Bayonet Lock | 65 °C | -40 °C | Black | Circuit Board Solder | Plastic | 2 A | Elastomer |
