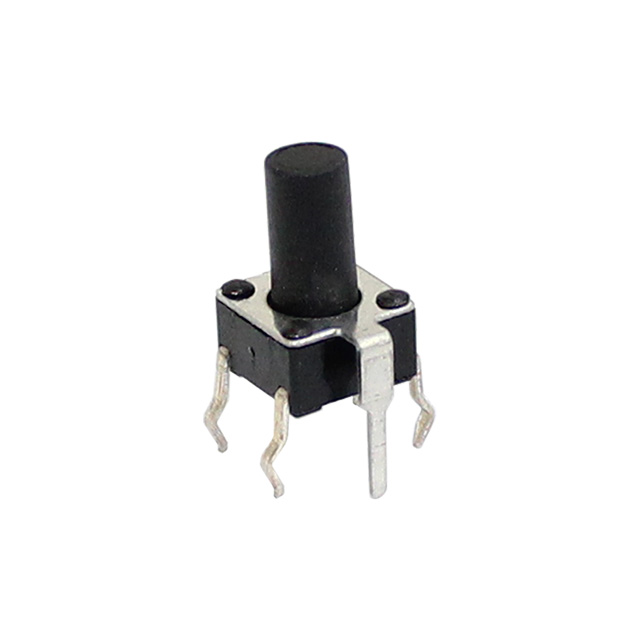

CT1102P9 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Outline [x] | Outline [y] | Illumination | Switch Function | Operating Force | Termination Style | Actuator Height off PCB, Vertical [z] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Contact Rating @ Voltage | Actuator Orientation | Circuit | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 6 mm | 6 mm | Non-Illuminated | Off-Mom | 260 gf | PC Pin | 9.5 mm | 85 °C | -40 C | Plunger for Cap | 0.05 A 50 VDC | Top Actuated | SPST-NO | Through Hole |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 6 mm | 6 mm | Non-Illuminated | Off-Mom | 160 gf | PC Pin | 9.5 mm | 85 °C | -40 C | Plunger for Cap | 0.05 A 50 VDC | Top Actuated | SPST-NO | Through Hole |
