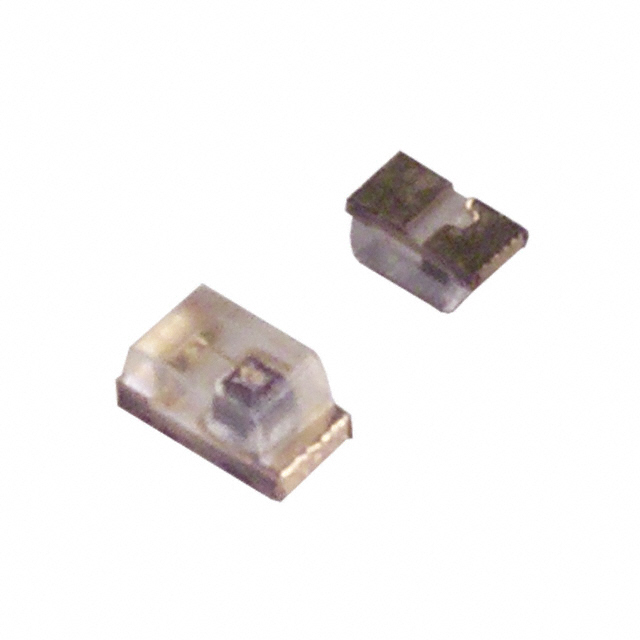

SML-LX0402 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GREEN CLEAR 0402 SMD

Part	Viewing Angle	Configuration	Millicandela Rating	Lens Transparency	Mounting Type	Lens Color	Lens Style	Lens Size [x]	Lens Size [y]	Color	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height (Max) [z]	Wavelength - Peak	Current - Test	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]
Lumex Opto/Components Inc. SML-LX0402UPGC-TR	120 °	Standard	110 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm	Green	3.5 V	0402 (1005 Metric)	0.7 mm	525 nm	20 mA	0402 (1005 Metric)	1 mm	0.55 mm
Lumex Opto/Components Inc. SML-LX0402SYC-TR	120 °	Standard	60 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm	Yellow	2 V			590 nm	20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.5 mm

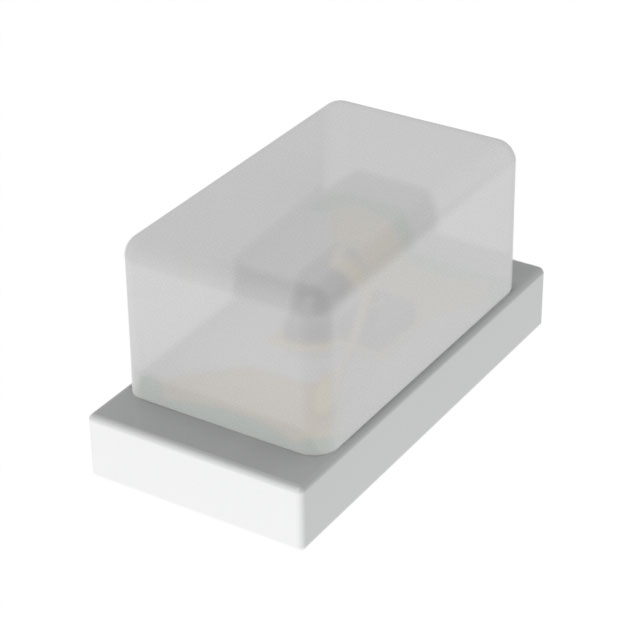

Lumex Opto/Components Inc. SML-LX0402GC-TR	120 °	Standard	10 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm	Green	2.2 V			565 nm	20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.52 mm
Lumex Opto/Components Inc. SML-LX0402SUGC-TR	120 °	Standard	45 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm	Green	2.2 V				20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.5 mm
Lumex Opto/Components Inc. SML-LX0402SOC-TR	120 °	Standard	120 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm		2 V			610 nm	20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.5 mm
Lumex Opto/Components Inc. SML-LX0402DRC-TR	120 °	Independent	25 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	1 mm	0.5 mm	Red	2 V			650 nm	20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.5 mm
Lumex Opto/Components Inc. SML-LX0402SIC-TR	120 °	Standard	140 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm	Red	2 V			636 nm	20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.5 mm
Lumex Opto/Components Inc. SML-LX0402USBC-TR	120 °	Standard	60 mcd	Clear	Surface Mount	Colorless	Rectangle with Flat Top	0.8 mm	0.5 mm	Blue	3.3 V			463 nm	20 mA	0402 (1005 Metric)	1 mm	0.5 mm	0.5 mm
