1775333 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN FPC BOTTOM 12POS 0.5MM R/A

Part	Contact Material	Contact Finish	Housing Color	Locking Feature	Housing Material	Actuator Material	Actuator Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Connector/Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Features	Material Flammability Rating	FFC, FCB Thickness	Termination	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Cable End Type	Number of Positions
TE Connectivity Raychem Cable Protection 1-1775333-2	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	12	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

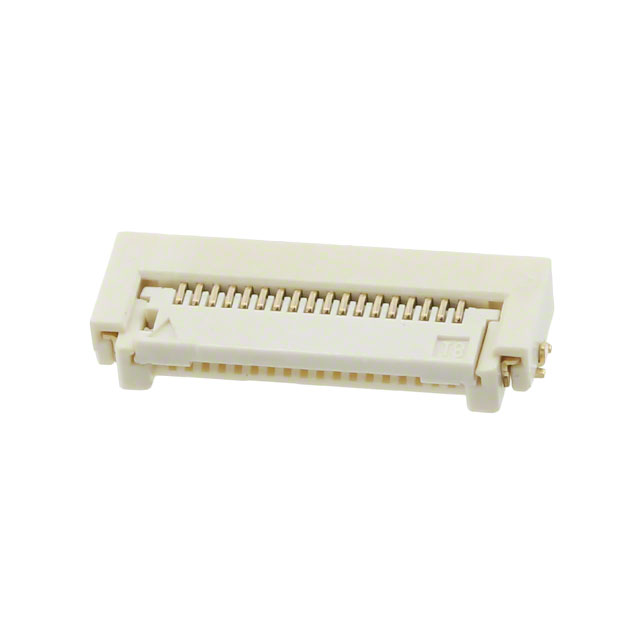

TE Connectivity Raychem Cable Protection 1-1775333-8	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	18	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

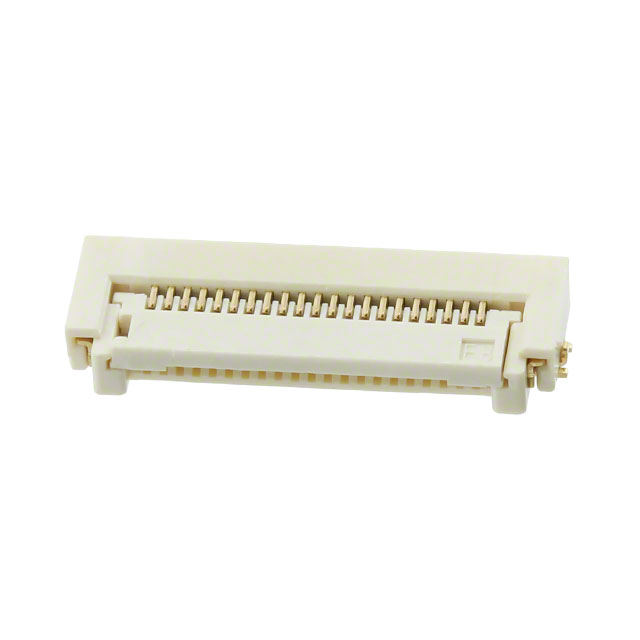

TE Connectivity Raychem Cable Protection 2-1775333-1	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	21	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

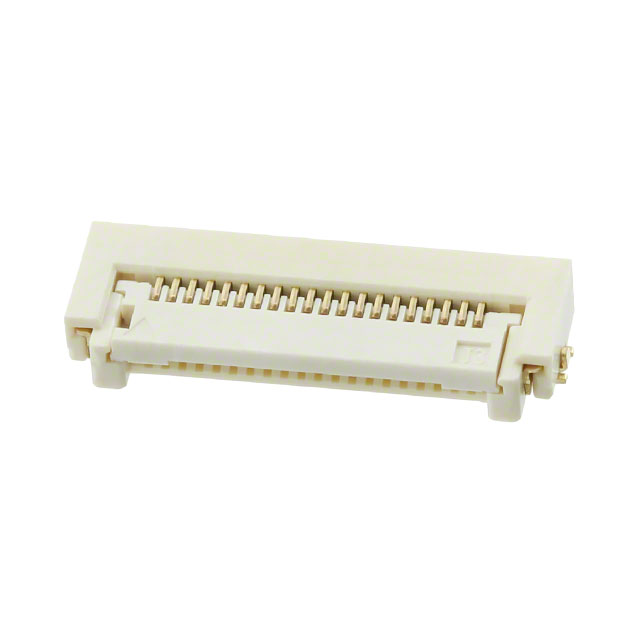

TE Connectivity Raychem Cable Protection 2-1775333-0	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	20	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

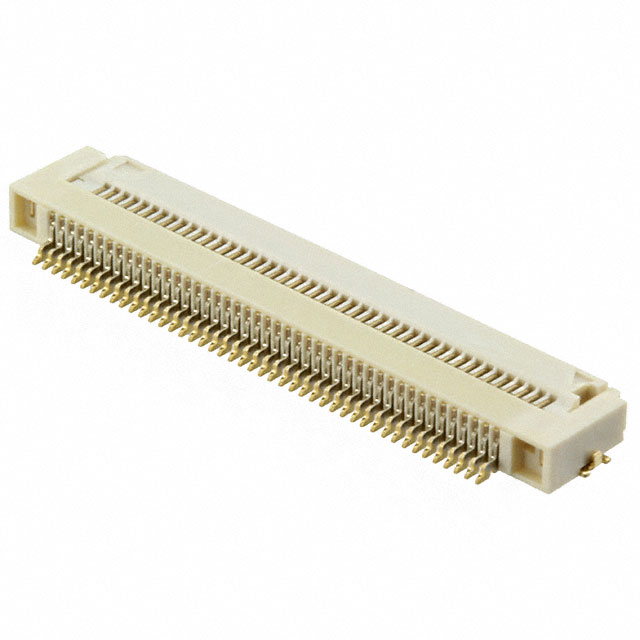

TE Connectivity Raychem Cable Protection 4-1775333-5	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	45	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

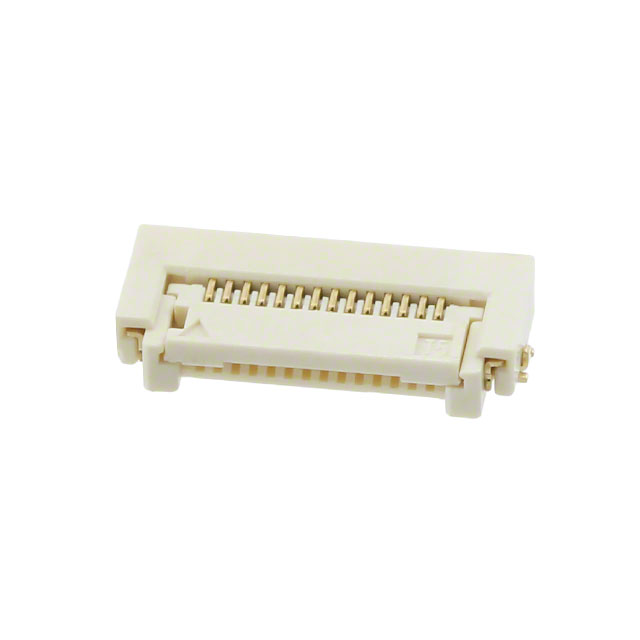

TE Connectivity Raychem Cable Protection 1-1775333-4	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	14	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

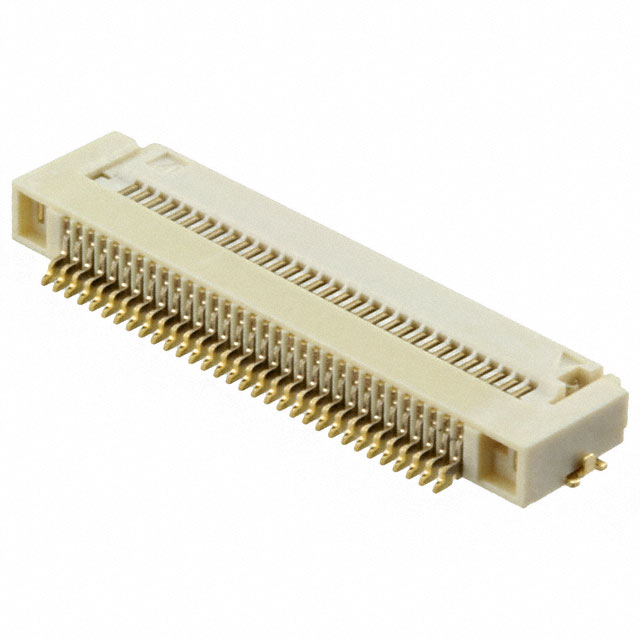

TE Connectivity Raychem Cable Protection 3-1775333-2	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in		Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight
TE Connectivity Raychem Cable Protection 3-1775333-5	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	35	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight

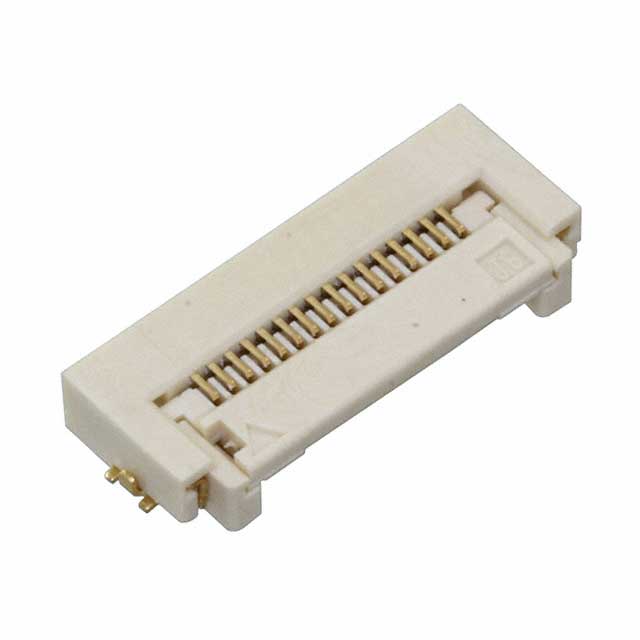

TE Connectivity Raychem Cable Protection 1-1775333-6	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in		Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight	16
TE Connectivity Raychem Cable Protection 1775333-8	Phosphor Bronze	Gold	Natural	Flip Lock	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Natural	250 VDC	85 °C	-20 C	Surface Mount Right Angle	50 µin	1.27 µm	0.5 A	Contacts Bottom	0.5 mm	0.02 in	8	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	0.3 mm	Solder	0.081 in	2.05 mm	FPC	Straight
