307-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Contact Finish | Color | Features | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Number of Positions | Contact Material | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Gender | Number of Rows [custom] | Termination | Read Out | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

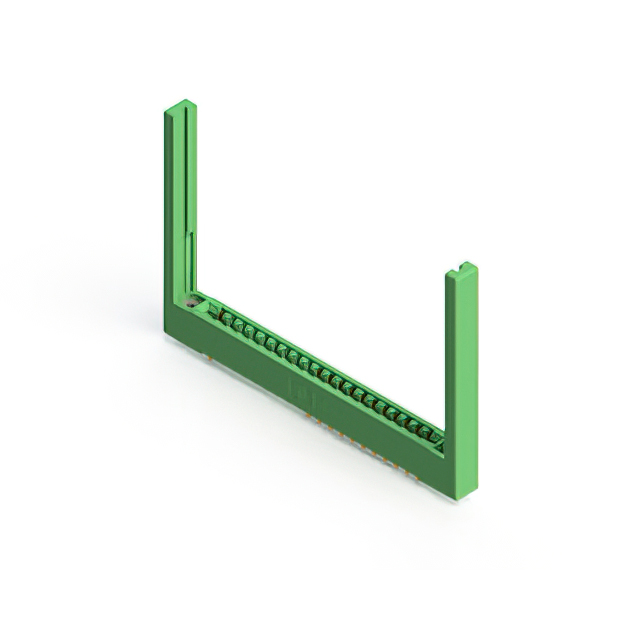

 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Gold | Green | Card Extender Card Guides | Non Specified - Dual Edge | -40 C | 105 ░C | 20 Bay/Row | Semi Bellows | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 40 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Solder | Dual | |||||
 EDAC Inc. | Polyester Thermoplastic | Right Angle Through Hole | Gold | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Semi Bellows | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 80 | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Wire Wrap | Dual | 1 | 0.156 " | 3.96 mm | 40 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Gold | Green | Card Guides | Non Specified - Dual Edge | -40 C | 105 ░C | 20 Bay/Row | Semi Bellows | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 40 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Wire Wrap | Dual | |||||
 EDAC Inc. | Polyester Thermoplastic | Through Hole | Gold | Green | Non Specified - Single Edge | -40 C | 105 ░C | Semi Bellows | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 40 | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Wire Wrap | Single | 1 | 40 | 1 | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | 20 Bay/Row | Semi Bellows | 3.96 mm | 0.156 in | 40 | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Solder Eyelet(s) | Dual | 0.156 " | 3.96 mm | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Right Angle Through Hole | Gold | Green | Non Specified - Dual Edge | -40 C | 105 ░C | 20 Bay/Row | Semi Bellows | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 40 | Copper Alloy | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Solder | Dual | 0.116 " | 2.95 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | Right Angle Through Hole | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Semi Bellows | 3.96 mm | 0.156 in | 80 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Solder | Dual | 1 | 40 | |||||||||
 EDAC Inc. | Polyester Thermoplastic | Right Angle Through Hole | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Semi Bellows | 3.96 mm | 0.156 in | 80 | Copper Alloy | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Solder | Dual | 1 | 0.128 " | 3.25 mm | 40 | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Through Hole | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | 20 Bay/Row | Semi Bellows | 3.96 mm | 0.156 in | 40 | Copper Alloy | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 2 | Solder | Dual | 0.116 " | 2.95 mm | ||||||
 EDAC Inc. | Polyester Thermoplastic | Through Hole | Tin | Green | Card Guides | Non Specified - Single Edge | -40 C | 105 ░C | Semi Bellows | 3.96 mm | 0.156 in | 40 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Wire Wrap | Single | 1 | 40 | 1 |
