078787 Series

Manufacturer: Molex

Catalog

CONN RCPT 20POS 0.079 TIN PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Applications	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Connector Type	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Style	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Material	Contact Shape	Contact Type	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post	Insulation Material	Contact Finish Thickness - Post	Mated Stacking Heights
Molex 0787872054	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	20	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787871054	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	10	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787871854	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	18	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787870654	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	6	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787871254	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	12	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787871464	2.5 µm	98.4 µin	0.079 in	2 mm	125 VAC		Tin	Solder	2.5 µm	98.4 µin	14	Through Hole		3 mm	Header	Black	2	4.45 mm	0.175 in		-55 °C	105 ░C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All	UL94 V-0	0.118 in	Liquid Crystal Polymer (LCP)

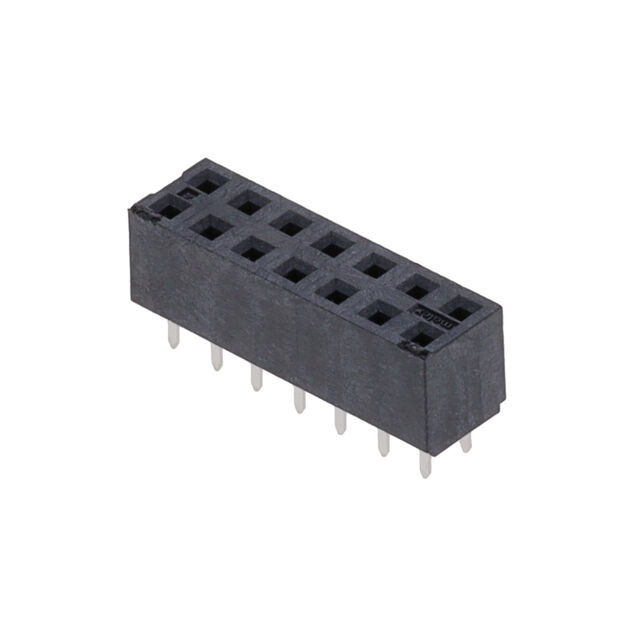

Molex 0787871454	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	14	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787872064		1 çm	0.079 in	2 mm	125 VAC	General Purpose	Gold	Solder	2.5 µm	98.4 µin	20	Through Hole		3 mm	Header	Black	2				-55 °C	105 ░C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All	UL94 V-0	0.118 in	Liquid Crystal Polymer (LCP)	39.4 çin	5 mm
Molex 0787872654	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin	26	Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
Molex 0787873254	2.5 µm	98.4 µin	0.079 in	2 mm	125 VDC	Automotive General Purpose Telecommunications	Tin	Solder	2.5 µm	98.4 µin		Through Hole	0.075 in	1.91 mm	Receptacle	Black	2	4.45 mm	0.175 in	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	Copper Alloy	Square	Female Socket	All
