837-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 66POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Mounting Type	Number of Rows [custom]	Contact Material	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Color	Card Type	Read Out	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Flange Feature	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 837-066-524-808	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder	4-40 Threaded Insert Top Mount Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 837-066-524-812	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder	Side Mount Opening Unthreaded	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	3.25 mm
EDAC Inc. 837-066-542-807	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Wire Wrap	M3 Threaded Insert Top Mount Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm

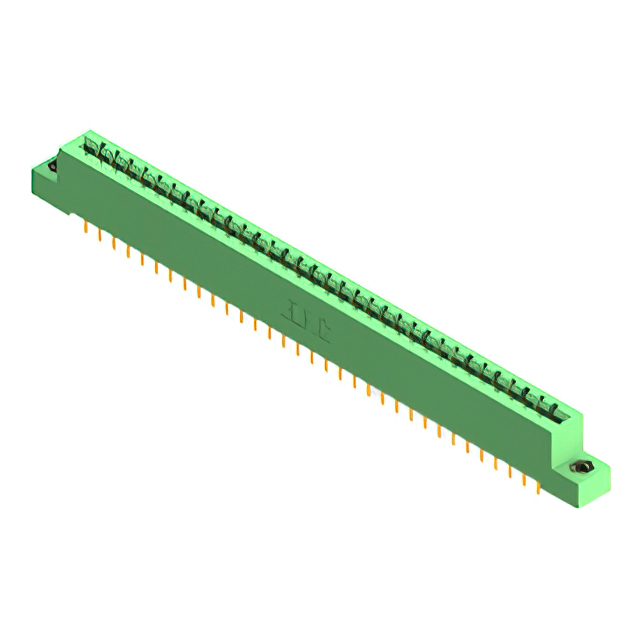

EDAC Inc. 837-066-520-208	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm

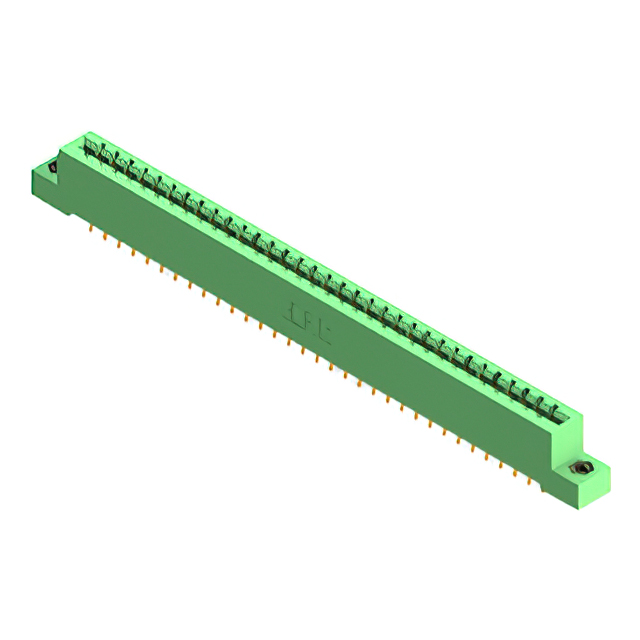

EDAC Inc. 837-066-556-208	Diallyl Phthalate (DAP)	2	Female	Board Edge Straddle Mount	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Extender
EDAC Inc. 837-066-523-808	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder	4-40 Threaded Insert Top Mount Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 837-066-524-802	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder		3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	3.25 mm
EDAC Inc. 837-066-542-803	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Wire Wrap	Floating Bobbin Top Mount Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm
EDAC Inc. 837-066-540-807	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Wire Wrap	M3 Threaded Insert Top Mount Opening	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm

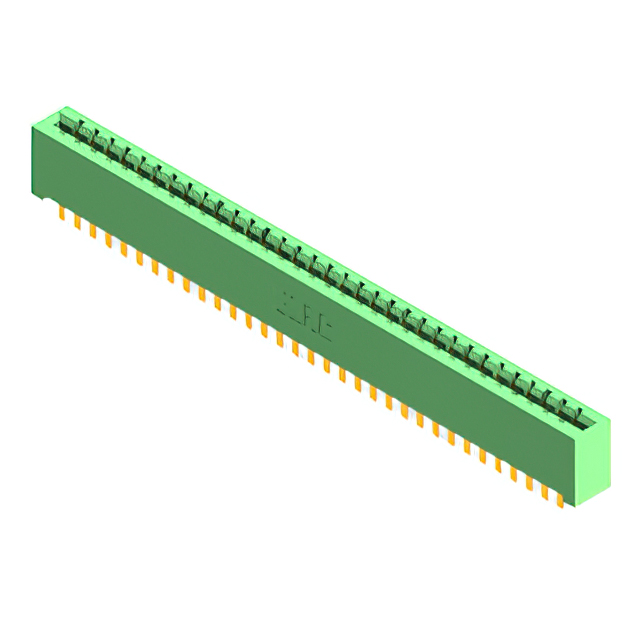

EDAC Inc. 837-066-500-201	Diallyl Phthalate (DAP)	2	Female	Through Hole	2	Copper Alloy	66	Gold	0.25 Ám	10 Áin	33	Green	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	Solder Eyelet(s)		3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
