M50-315 Series

Catalog

BOARD-TO-BOARD CONNECTOR, DUAL ENTRY, ARCHER M50 SERIES, SURFACE MOUNT, RECEPTACLE, 50, 1.27 MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Material	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Style	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Mounting Type	Number of Rows [custom]	Number of Positions	Termination	Material Flammability Rating	Features

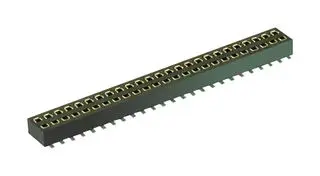

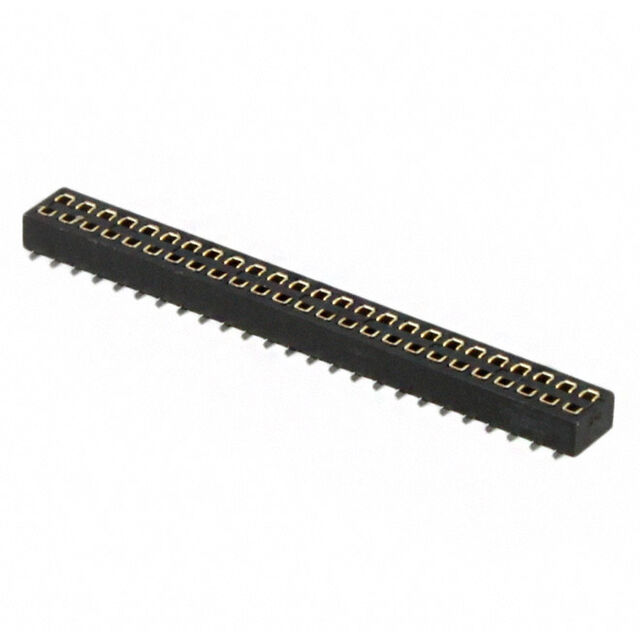

Harwin Inc. M50-3152542	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	50	Solder	UL94 V-0	Board Guide

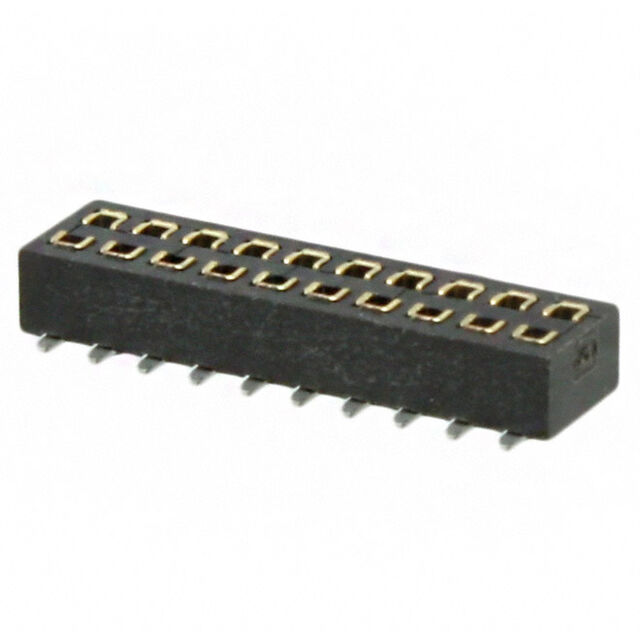

Harwin Inc. M50-3151042	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	20	Solder	UL94 V-0	Board Guide

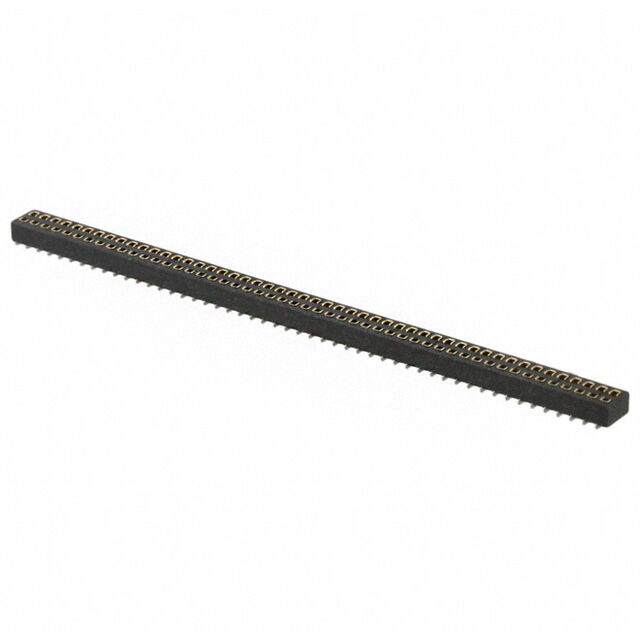

Harwin Inc. M50-3155042	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	100	Solder	UL94 V-0	Board Guide
Harwin Inc. M50-3150542R	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	10	Solder	UL94 V-0	Board Guide Pick and Place

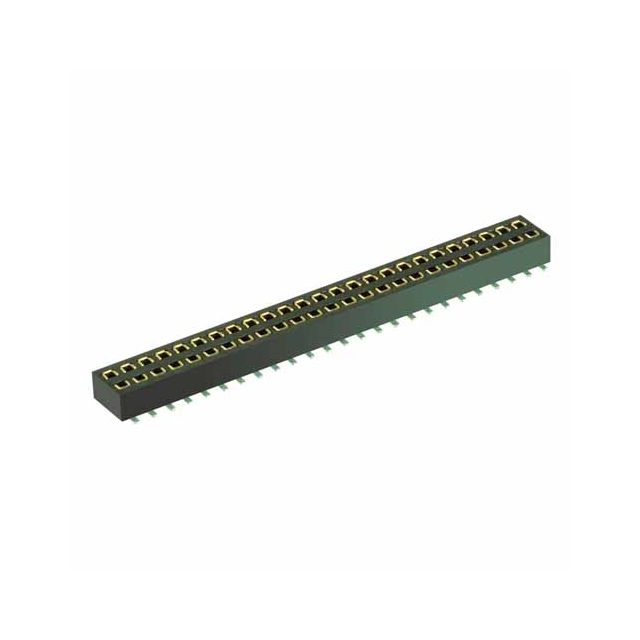

Harwin Inc. M50-3152542R	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	50	Solder	UL94 V-0	Board Guide Pick and Place
Harwin Inc. M50-3150542	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	10	Solder	UL94 V-0	Board Guide
Harwin Inc. M50-3150342R	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	6	Solder	UL94 V-0	Board Guide

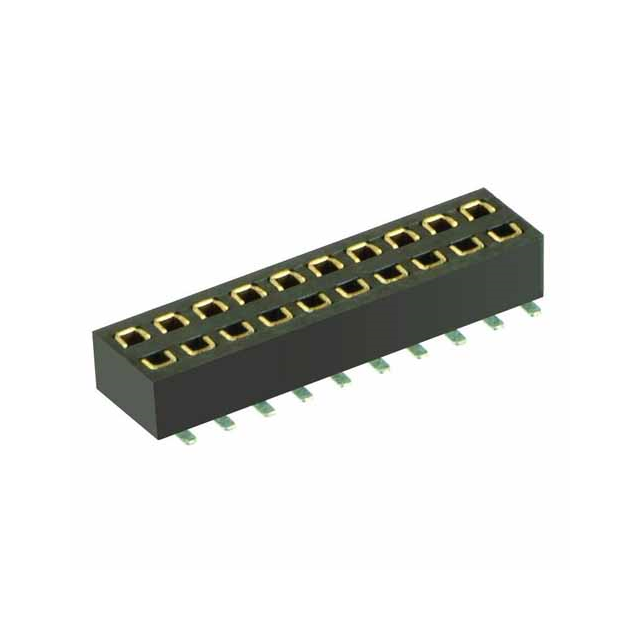

Harwin Inc. M50-3150342	2.54 µm	100 µin	General Purpose Medical Telecommunications	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	0.087 "	2.2 mm	Gold	1.27 mm	0.05 in	3.2 mm 3.9 mm 4.6 mm 5.3 mm	Black	-40 C	105 ░C	0.05 in	1.27 mm	Tin	Board to Board Cable	All	Female Socket	Flash	Receptacle Bottom or Top Entry	Push-Pull	Surface Mount	2	6	Solder	UL94 V-0	Board Guide
