DKFP Series

Catalog

COMMON MODE CHOKES / FILTERS DKFP COMP.CHOKE THT P V 0.3A 2X47MH

Part	Number of Lines	DC Resistance (DCR) (Max)	Package / Case	Current Rating (Max) [Max]	Filter Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height (Max)	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [z]	Height (Max) [z]
SCHURTER Inc. DKFP-C21C-D347	2	1.85 Ohm	Vertical 4 PC Pin	300 mA	Power Line	250 V	125 °C	-40 C	Through Hole	26 mm	1.024 in	0.925 "	0.63 "	16 mm	23.5 mm
SCHURTER Inc. DKFP-A21A-021J	2	61 mOhm	Vertical 4 PC Pin	2 A	Power Line	250 V	125 °C	-40 C	Through Hole			0.728 in	0.354 in	9 mm	18.5 mm	0.551 in	14 mm
SCHURTER Inc. DKFP-C21C-0115	2	350 mOhm	Vertical 4 PC Pin	1 A	Power Line	250 V	125 °C	-40 C	Through Hole	26 mm	1.024 in	0.925 "	0.63 "	16 mm	23.5 mm
SCHURTER Inc. DKFP-H22H-0168	2	1.4 Ohm	4 PC Pin Horizontal	1 A	Power Line	250 V	125 °C	-40 C	Through Hole			1.693 in	1.654 in	42 mm	43 mm	25 mm		0.984 in
SCHURTER Inc. DKFP-C21C-2N3L	2	93 mOhm	Vertical 4 PC Pin	2.5 A	Power Line	250 V	125 °C	-40 C	Through Hole	26 mm	1.024 in	0.925 "	0.63 "	16 mm	23.5 mm

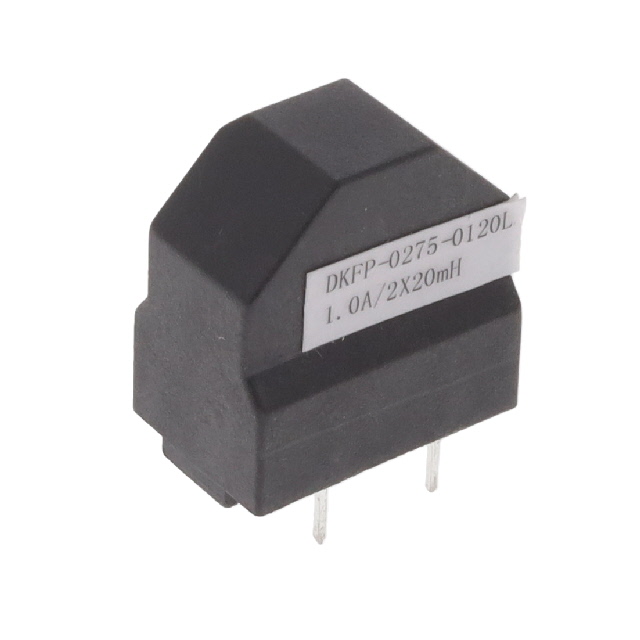

SCHURTER Inc. DKFP-0275-0120L	2					250 V	125 °C	-40 C	Through Hole

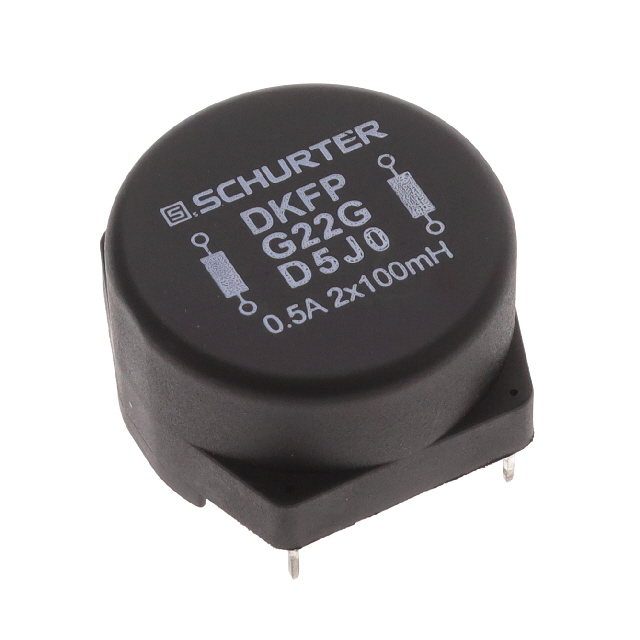

SCHURTER Inc. DKFP-G22G-D5J0	2	3.1 Ohm	Nonstandard	500 mA		250 V	125 °C	-40 C	Through Hole			1.339 in	1.299 in	33 mm	34 mm

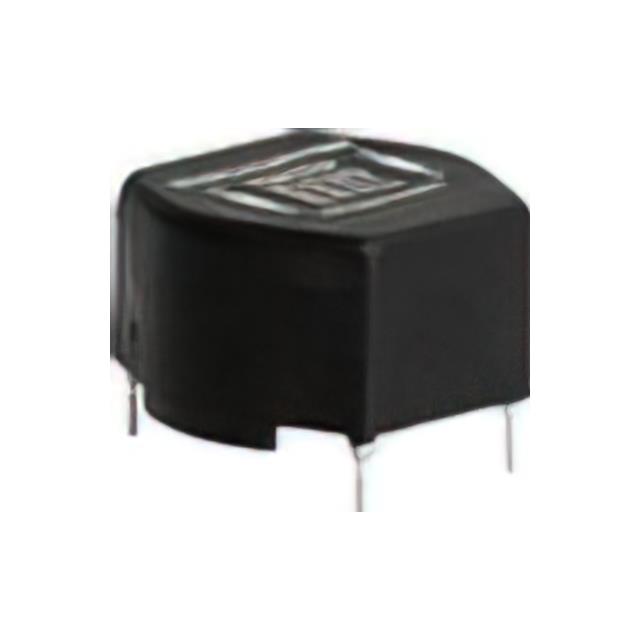

SCHURTER Inc. DKFP-B21B-04D7	2	18 mOhm	Vertical 4 PC Pin	4 A	Power Line	250 V	125 °C	-40 C	Through Hole			0.748 in	0.512 "	13 mm	19 mm	21 mm		0.827 in
SCHURTER Inc. DKFP-C21C-1K10	2	200 mOhm	Vertical 4 PC Pin	1.2 A	Power Line	250 V	125 °C	-40 C	Through Hole	26 mm	1.024 in	0.925 "	0.63 "	16 mm	23.5 mm
