179276 Series

Catalog

CONN HEADER R/A 2POS 5.08MM

Part	Shrouding	Contact Finish - Post	Insulation Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Rows	Contact Finish - Mating	Style	Fastening Type	Connector Type	Applications	Insulation Material	Termination	Contact Material	Material Flammability Rating

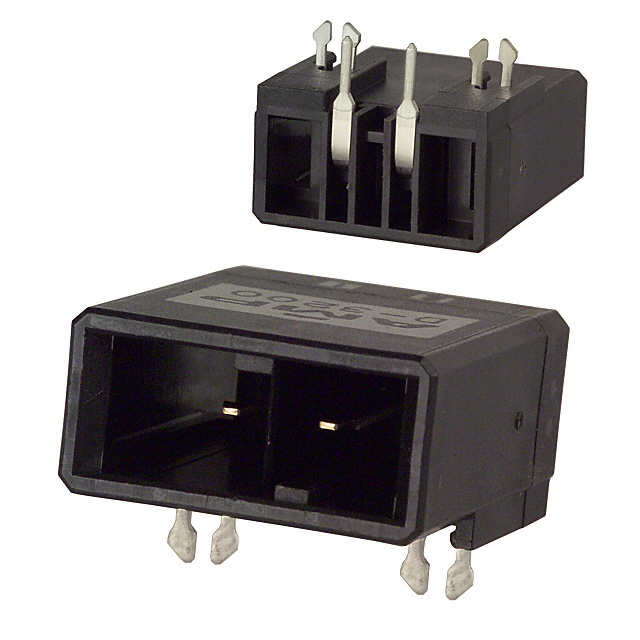

TE Connectivity Raychem Cable Protection 1-179276-3	Shrouded - 4 Wall	Tin	Black	600 V	30 Áin	0.76 Ám	105 ░C	-55 °C	2	Tab	All	0.15 in	3.81 mm	9.35 mm	0.368 in	Rectangular	5.08 mm	0.2 in	Through Hole Right Angle	1	Gold PdNi +Gold	Board to Board Cable	Detent Lock	Header	General Purpose Industrial	Glass Filled Polyester Thermoplastic	Solder	Copper Alloy	UL94 V-0

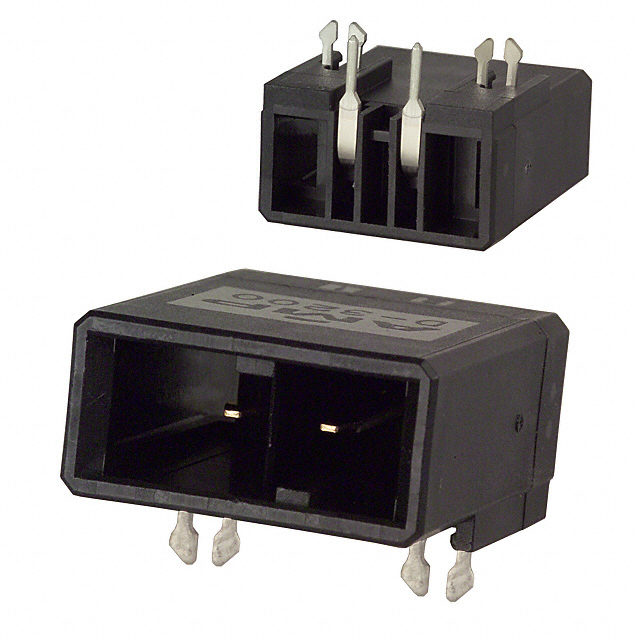

TE Connectivity Raychem Cable Protection 1-179276-2	Shrouded - 4 Wall	Tin	Black	600 V	15 µin	0.38 µm	105 ░C	-55 °C	2	Tab	All	0.15 in	3.81 mm	9.35 mm	0.368 in	Rectangular	5.08 mm	0.2 in	Through Hole Right Angle	1	Gold PdNi +Gold	Board to Board Cable	Detent Lock	Header	General Purpose Industrial	Glass Filled Polyester Thermoplastic	Solder	Copper Alloy	UL94 V-0
