MS3102E18 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN RCPT FMALE 10P SOLDER CUP
| Part | Voltage Rating | Fastening Type | Orientation | Ingress Protection | Primary Material | Contact Finish - Mating | Current Rating (Amps) | Shell Size - Insert | Mounting Feature | Connector Type | Color | Number of Positions | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Mounting Type | Qualification | Grade | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Orientation [z] | Voltage Rating [custom] | Voltage Rating [custom] | Features | Applications | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Insert Material | Contact Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

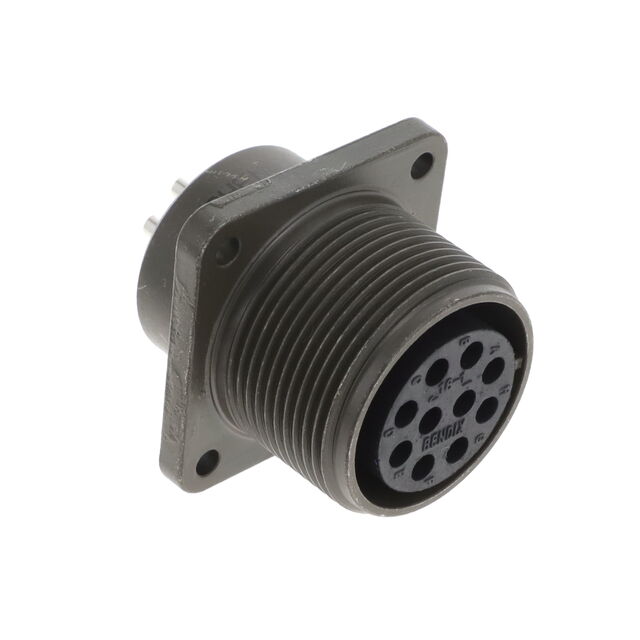

 ITT Cannon, LLC | 200 VAC 250 V | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 22 A | 18-1 | Flange | Receptacle Female Sockets | Olive Drab | 10 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | ||||||||||||
 ITT Cannon, LLC | 500 VAC 700 VDC | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 41 A | Flange | Receptacle Female Sockets | Olive Drab | 4 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | 18 | 10 | |||||||||||
ITT Cannon, LLC | 500 VAC 700 VDC | Threaded | Environment Resistant | Metal | Silver | 22 A 41 A | 18-8 | Flange | Receptacle Male Pins | Olive Drab | 8 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | Z | ||||||||||||
ITT Cannon, LLC | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 22 A | 18-4 | Flange | Receptacle Male Pins | Olive Drab | 4 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | 1250 VDC | 900 VAC | |||||||||||

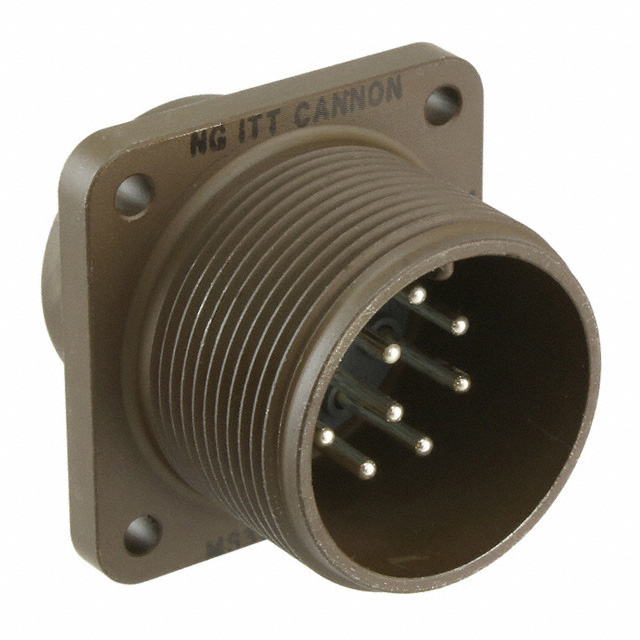

 ITT Cannon, LLC | 200 VAC 250 V | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 22 A | 18-1 | Flange | Receptacle Male Pins | Olive Drab | 10 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | ||||||||||||
ITT Cannon, LLC | 500 VAC 700 VDC | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 22 A 41 A | 18-8 | Flange | Receptacle Male Pins | Olive Drab | 8 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | Dust Cap | |||||||||||
ITT Cannon, LLC | 500 VAC 700 VDC | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 41 A | Flange | Receptacle Male Pins | Olive Drab | 4 | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | 18 | 10 | |||||||||||
ITT Cannon, LLC | Threaded | N (Normal) | Environment Resistant | Metal | Silver | 13 A | Flange | Receptacle Female Sockets | Olive Drab | Olive Drab Cadmium | -55 C | 125 °C | Aluminum Alloy | Panel Mount | MIL-DTL-5015 | Military | 1250 VDC | 900 VAC | Aviation Industrial Marine Military | 22 | 18 | Plastic | Copper Alloy | Unshielded |
