DH251 Series

Catalog

SWITCH PB DPST-NO/NC 2A 125V

Part	Current Rating (Amps)	Electrical Life	Type	Circuit	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Marking	Voltage Rating - AC	Ingress Protection	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Features	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Illumination Type, Color	Voltage Rating - DC

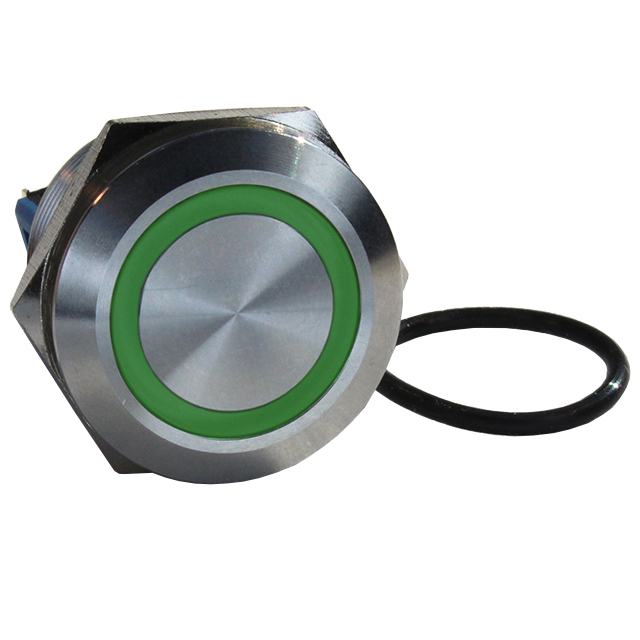

CIT Relay and Switch DH251NBSG24	2 A 10 A	50000 Cycles	Anti-Vandal Illuminated	SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round	24 V	Silver	Stainless Steel	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom	Green LED	24 V
CIT Relay and Switch DH251LBSRGN	2 A	50000 Cycles	Anti-Vandal Illuminated	SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Silver	Stainless Steel	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-On On-Off	Green/Red LED	24 V
CIT Relay and Switch DH251LBSBN	2 A	50000 Cycles	Anti-Vandal Illuminated	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Silver	Stainless Steel	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-On On-Off	Blue LED	24 V

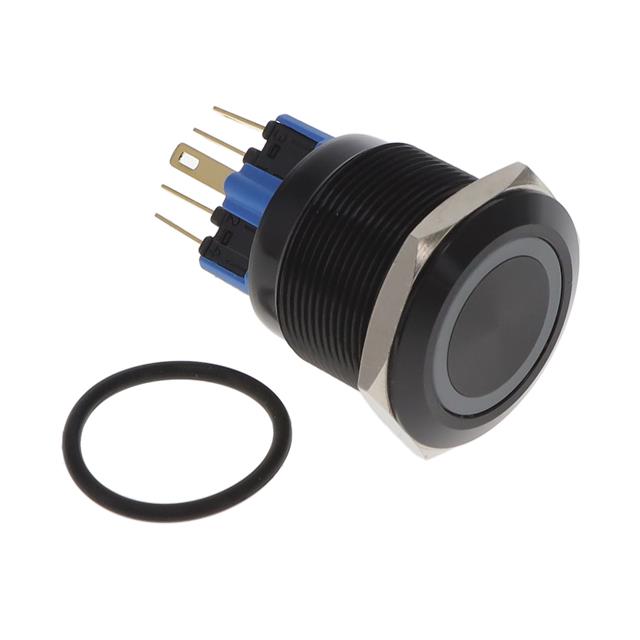

CIT Relay and Switch DH251LBBBN	2 A	50000 Cycles	Anti-Vandal Illuminated	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Black		Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-On On-Off	Blue LED	24 V

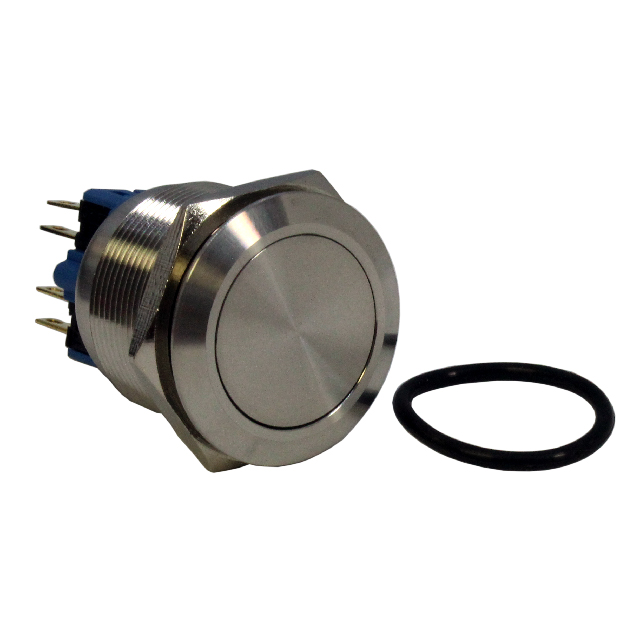

CIT Relay and Switch DH251NASZZ	2 A	50000 Cycles	Anti-Vandal	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Silver	Stainless Steel	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom		24 V
CIT Relay and Switch DH251NBBRN	2 A	50000 Cycles	Anti-Vandal Illuminated	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Black		Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom	LED Red	24 V

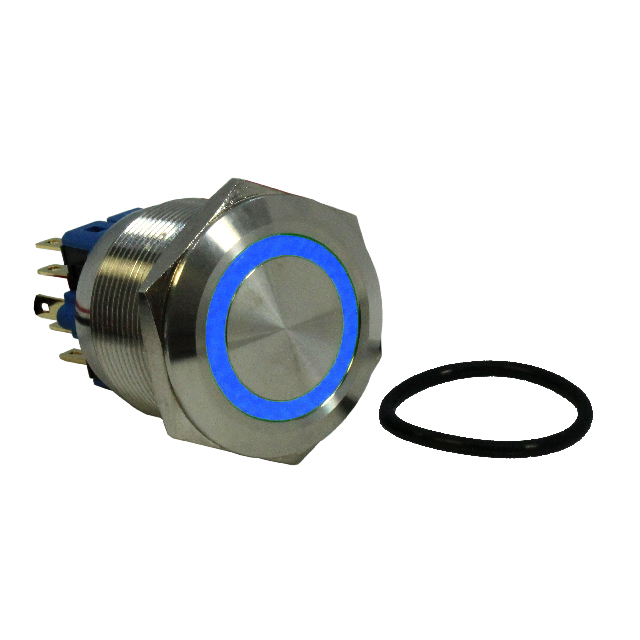

CIT Relay and Switch DH251NBSBN	2 A	50000 Cycles	Anti-Vandal Illuminated	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Silver	Stainless Steel	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom	Blue LED	24 V
CIT Relay and Switch DH251NBSR24	2 A	50000 Cycles	Anti-Vandal Illuminated	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round	24 V	Silver	Stainless Steel	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom	LED Red	24 V

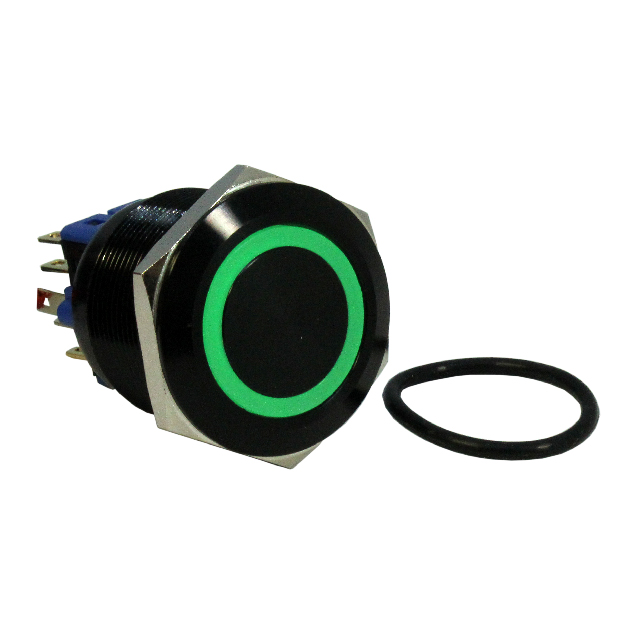

CIT Relay and Switch DH251NBBGN	2 A	50000 Cycles	Anti-Vandal Illuminated	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Flush Round		Black		Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom	Green LED	24 V

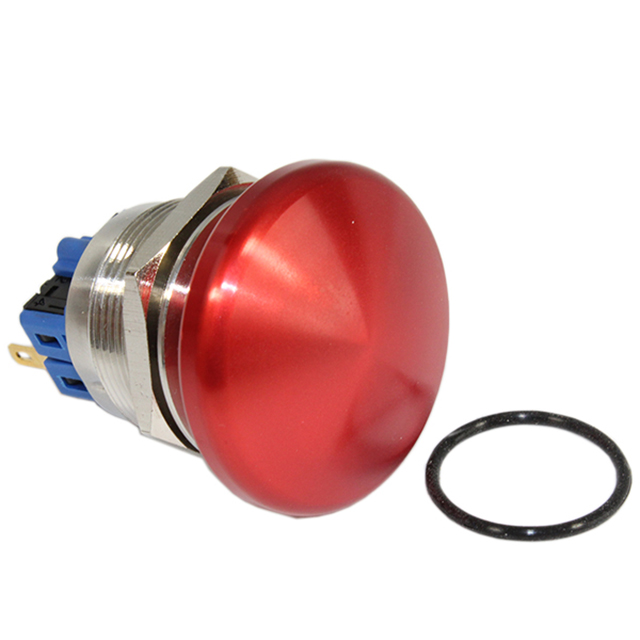

CIT Relay and Switch DH251NMRSZZ	2 A	50000 Cycles	Anti-Vandal	DPST-NO/NC SPST-NC SPST-NO	25 mm	Panel Mount Front	No Marking	125 V	IP67 - Dust Tight Waterproof	Button Mushroom Round		Red		Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Off-Mom On-Mom		24 V
