EB133 Series
Manufacturer: Adam Tech
Beta
⌘K

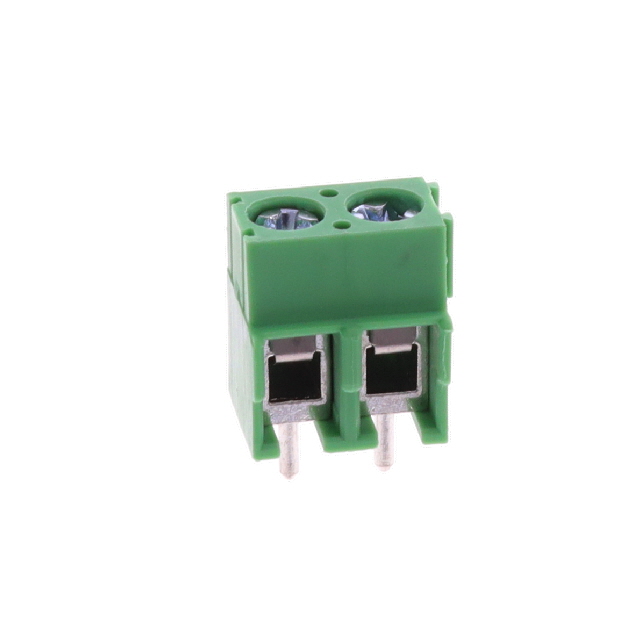

EUROBLOCK 2POS
| Part | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Screw Material - Plating | Screw Thread | Contact Material - Plating | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Wire Termination | Number of Levels | Features | Voltage | Positions Per Level | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Color | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Stainless Steel | 3.5 Lb-In | 0.4 Nm | Steel - Zinc Plated | M2.6 | Tin | 115 °C | -40 C | 0.197 in | 5 mm | Screw - Leaf Spring Wire Guard | 1 | Interlocking (Side) | 300 VDC | 2 | Through Hole | 12 AWG | 26 AWG | Horizontal with Board | Green | 10 A |
