NRPN322 Series

Catalog

CONN HEADER R/A 64POS 2MM

Part	Contact Finish Thickness - Post	Insulation Color	Style	Contact Length - Post [custom]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Contact Material	Shrouding	Mounting Type	Contact Finish - Post	Connector Type	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Material Flammability Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Shape	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Features
Sullins Connector Solutions NRPN322PARN-RC	Flash	Black	Board to Board Cable	0.11 in	2.79 mm	0.079 "	2 mm	Solder	Gold	Brass	Unshrouded	Right Angle Through Hole	Gold	Header	150 VDC	All	2 A	Nylon 6T Polyamide (PA6T)	0.141 in	3.6 mm	2	UL94 V-0	64	-40 C	105 ░C	Push-Pull	Square	Male Pin	2 mm	0.079 in	4 mm	0.157 in	Flash

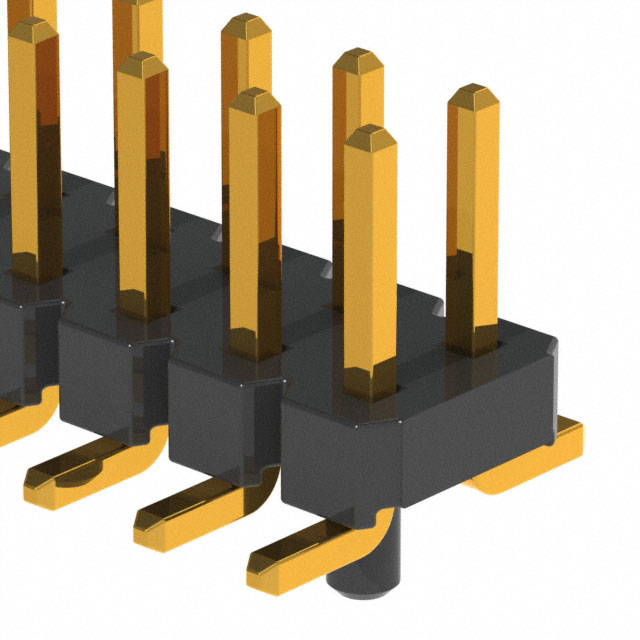

Sullins Connector Solutions NRPN322MAMP-RC	Flash		Board to Board Cable			0.079 "	2 mm	Solder	Gold	Brass	Unshrouded	Surface Mount	Gold	Header	150 VDC	All	2 A	Nylon 6T Polyamide (PA6T)	0.141 in	3.6 mm	2	UL94 V-0	64	-40 C	105 ░C	Push-Pull	Square	Male Pin	2 mm	0.079 in			Flash	0.059 in	1.5 mm	Board Guide
