JN2KW05F Series
Manufacturer: JAE Electronics
Beta
⌘K

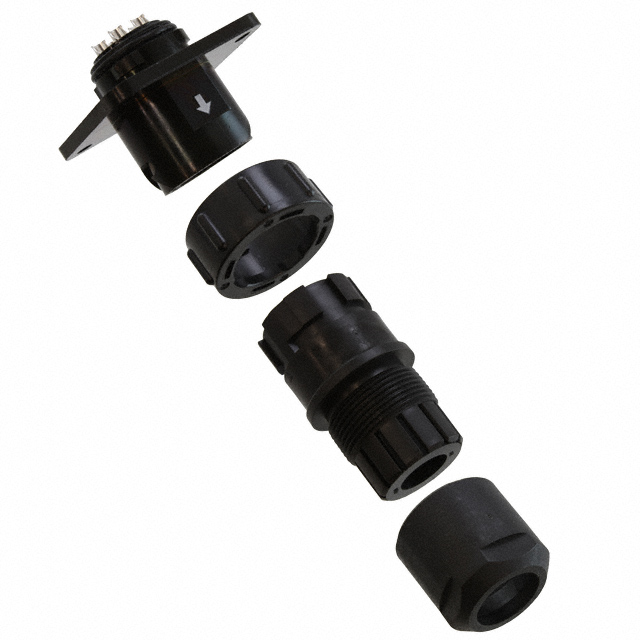

CONN RCPT FMALE 5P SOLDER CUP
| Part | Shell Material | Number of Positions | Applications | Primary Material | Shell Size - Insert | Voltage Rating | Mounting Feature | Ingress Protection | Mounting Type | Fastening Type | Contact Finish - Mating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Shell Finish | Color | Insert Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Zinc Alloy | 5 | Industrial | Metal | W | 400 VAC | Flange | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Panel Mount | Push-Twist | Silver | Backshell Ground Lug | -20 ░C | 100 °C | N (Normal) | Copper Alloy | Synthetic Resin | 13 A | Zinc | Black | Synthetic Resin | Receptacle Female Sockets |
