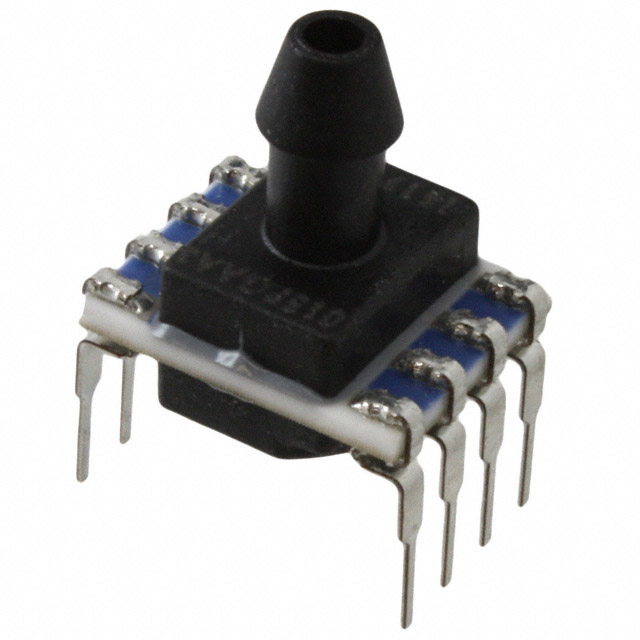

SSCDANN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 30PSIG 0.19" 12BIT 8DIP

Part	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Pressure Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Port Size	Port Size	Output	Mounting Type	Operating Pressure	Operating Pressure	Package / Case	Package / Case	Output Type	Supplier Device Package	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Accuracy	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure	Maximum Pressure	Maximum Pressure	Operating Pressure [custom]	Operating Pressure [custom]
Honeywell Sensing and Productivity Solutions SSCDANN030PGSA3	Barbed	3.6 V	3 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "	12 b	Through Hole	206.84 kPa	30 PSI	0.524 " 13.3 mm	8-DIP	SPI	8-DIP	60 PSI	413.69 kPa	Amplified Output Temperature Compensated	0.25 %
Honeywell Sensing and Productivity Solutions SSCDANN005PGAA5	Barbed	5.25 V	4.75 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "		Through Hole	34.47 kPa	5 PSI	0.524 " 13.3 mm	8-DIP	Analog Voltage	8-DIP	30 PSI	206.84 kPa	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions SSCDANN060PG3A5	Barbed	5.25 V	4.75 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "	12 b	Through Hole	413.69 kPa	60 PSI	0.524 " 13.3 mm	8-DIP	I2C	8-DIP	120 PSI	827.37 kPa	Amplified Output Temperature Compensated	0.25 %
Honeywell Sensing and Productivity Solutions SSCDANN1.6BGAA3	Barbed	3.6 V	3 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "		Through Hole	160 kPa	23.21 PSI	0.524 " 13.3 mm	8-DIP	Analog Voltage	8-DIP			Amplified Output Temperature Compensated	0.25 %	0.33 V	2.97 V	400 kPa	58.02 PSI
Honeywell Sensing and Productivity Solutions SSCDANN004BDSA5	Barbed	5.25 V	4.75 V	Differential	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "	12 b	Through Hole	400 kPa	58.02 PSI	0.524 " 13.3 mm	8-DIP	SPI	8-DIP			Amplified Output Temperature Compensated	0.25 %			800 kPa	116.03 PSI
Honeywell Sensing and Productivity Solutions SSCDANN005PG3A5	Barbed	5.25 V	4.75 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "	12 b	Through Hole	34.47 kPa	5 PSI	0.524 " 13.3 mm	8-DIP	I2C	8-DIP	30 PSI	206.84 kPa	Amplified Output Temperature Compensated	0.25 %
Honeywell Sensing and Productivity Solutions SSCDANN001PGAA5	Barbed	5.25 V	4.75 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "		Through Hole	6.89 kPa	1 PSI	0.524 " 13.3 mm	8-DIP	Analog Voltage	8-DIP	10 PSI	68.95 kPa	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions SSCDANN015PDAA5	Barbed	5.25 V	4.75 V	Differential	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "		Through Hole	103.42 kPa	15 PSI	0.524 " 13.3 mm	8-DIP	Analog Voltage	8-DIP			Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V			±30PSI	±206.84kPa
Honeywell Sensing and Productivity Solutions SSCDANN015PGAA5	Barbed	5.25 V	4.75 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "		Through Hole			0.524 " 13.3 mm	8-DIP	Analog Voltage	8-DIP	30 PSI	206.84 kPa	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V					15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions SSCDANN015PGSA3	Barbed	3.6 V	3 V	Vented Gauge	PC Pin	85 °C	-40 °C	Board Mount	4.93 mm	0.19 "	12 b	Through Hole			0.524 " 13.3 mm	8-DIP	SPI	8-DIP	30 PSI	206.84 kPa	Amplified Output Temperature Compensated	0.25 %							15 PSI	103.42 kPa
