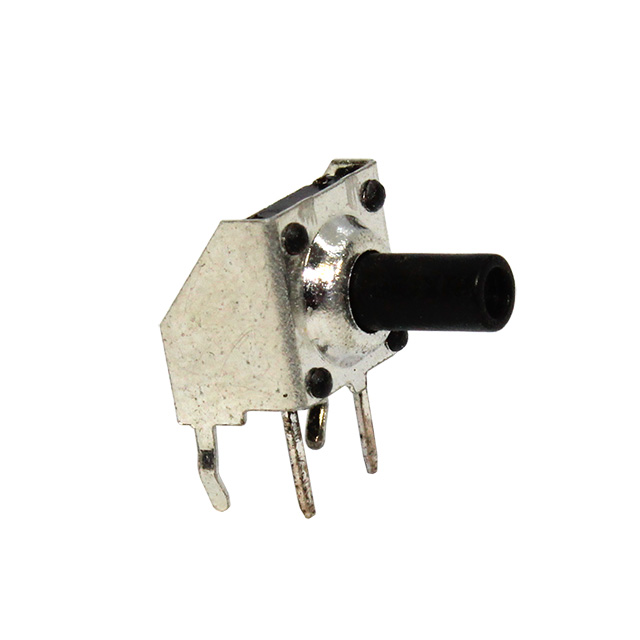

STV8.35 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 48V

Part	Actuator Material	Switch Travel	Switch Function	Outline [y]	Outline [x]	Actuator Length, Right Angle	Contact Rating @ Voltage	Actuator Type	Operating Force	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Circuit	Termination Style	Mounting Type
CIT Relay and Switch STV8.35LF260Q	Polybutylene Terephthalate (PBT)	0.45 mm	Off-Mom	5.8 mm	8.2 mm	8.35 mm	0.05 A 48 VDC	Standard	260 gf	Non-Illuminated	85 °C	-40 C	Side Actuated	SPST-NO	PC Pin	Right Angle Through Hole
CIT Relay and Switch STV8.35LF200Q	Polybutylene Terephthalate (PBT)	0.45 mm	Off-Mom	5.8 mm	8.2 mm	8.35 mm	0.05 A 48 VDC	Standard	0.2 kgf	Non-Illuminated	85 °C	-40 C	Side Actuated	SPST-NO	PC Pin	Right Angle Through Hole
CIT Relay and Switch STV8.35LF520Q	Polybutylene Terephthalate (PBT)	0.45 mm	Off-Mom	5.8 mm	8.2 mm	8.35 mm	0.05 A 48 VDC	Standard	520 gf	Non-Illuminated	85 °C	-40 C	Side Actuated	SPST-NO	PC Pin	Right Angle Through Hole
CIT Relay and Switch STV8.35LF160Q	Polybutylene Terephthalate (PBT)	0.45 mm	Off-Mom	5.8 mm	8.2 mm	8.35 mm	0.05 A 48 VDC	Standard	160 gf	Non-Illuminated	85 °C	-40 C	Side Actuated	SPST-NO	PC Pin	Right Angle Through Hole
