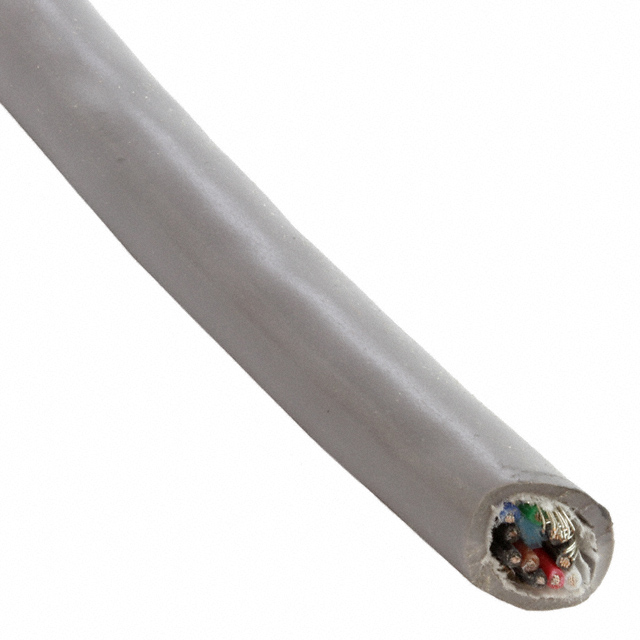

86605CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 10COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Insulation | Ratings | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length | Number of Conductors | Wire Gauge | Shield Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.314 in | 7.98 mm | Multi-Pair | 152.4 m | 500 ft | 10 | 24 AWG | Braid Foil | Biological Compatibility Drain Wire | 34 AWG | 10 | Slate |
ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.314 in | 7.98 mm | Multi-Pair | 304.8 m | 1000 ft | 10 | 24 AWG | Braid Foil | Biological Compatibility Drain Wire | 34 AWG | 10 | Slate |
